HA03 Victory LED Explosion-proof Highbay Light for Zone 1 and C1D1

High-bay/Low-bay C1D1 Zone 1

Victory is designed to provide optimum illumination in areas where flammable gases and vapors are constantly present. Its seamless enclosure effectively keeps the explosion inside, eliminating the potential danger to the personnel and facilities.

Material: Copper-free Aluminum
Wattage Options: 30W, 40W, 50W, 60W, 70W
Lumen Output: 4200lm – 9800lm
Color Temperature & Options: Warm White to Cool White, plus Colored LED (R/G/B/Amber) available
Cable Entry Sizes: 3/4"NPT, 1"NPT, M25×1.5, M20×1.5, 1-1/4"NPT, 1-1/2"NPT
Protection Ratings: IP66 & IK10
Operating Temperature Range: -40°C to 65°C

Product Details
Certifications
Specifications

HA03 explosion proof light for zone 1 c1d1 1

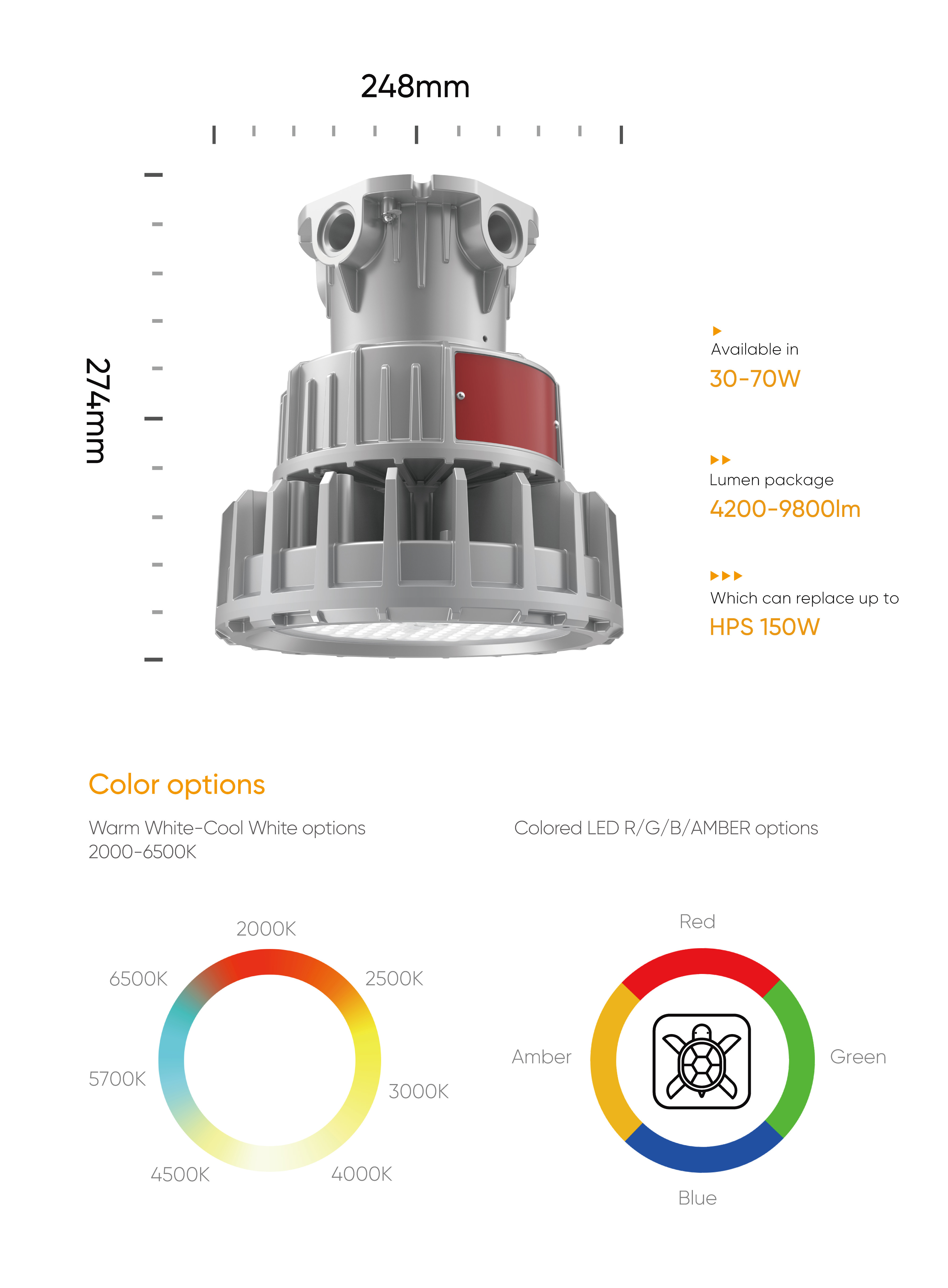

HA03 explosion proof light with color options 2

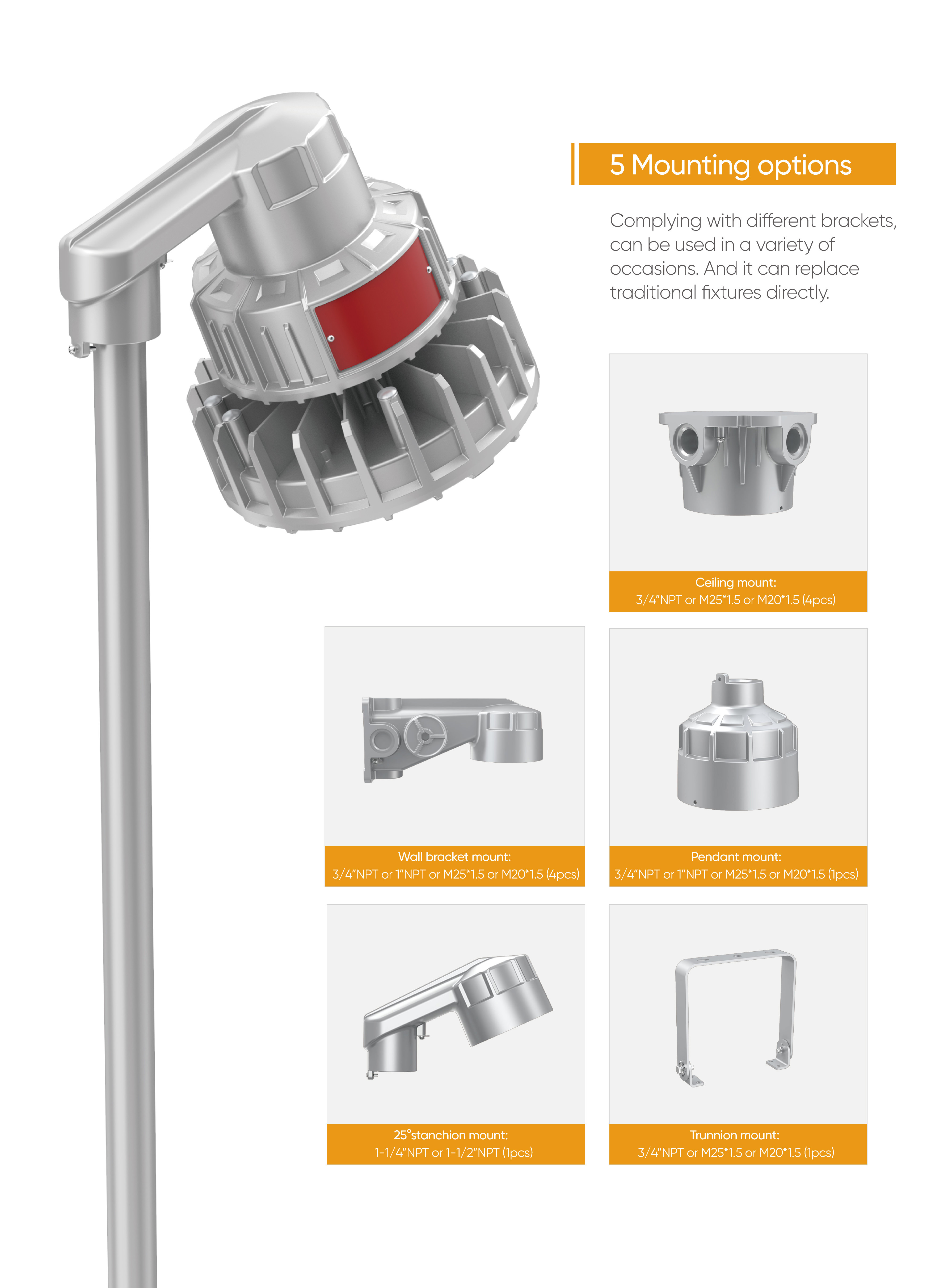

HA03 explosion proof light mounting options 3

HA03 explosion proof light connection and flame proof structure 4

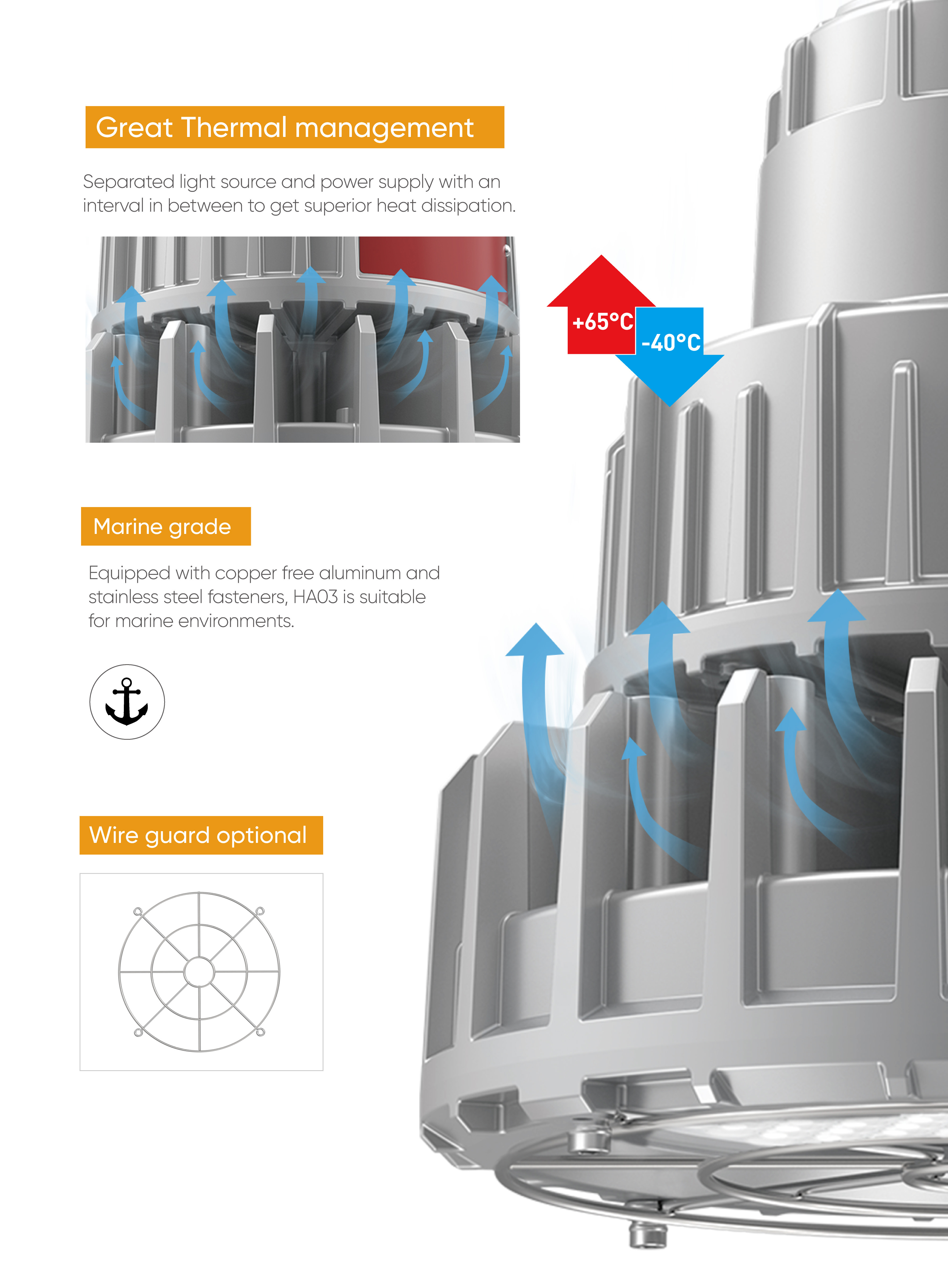

HA03 explosion proof light thermal management marine grade 5

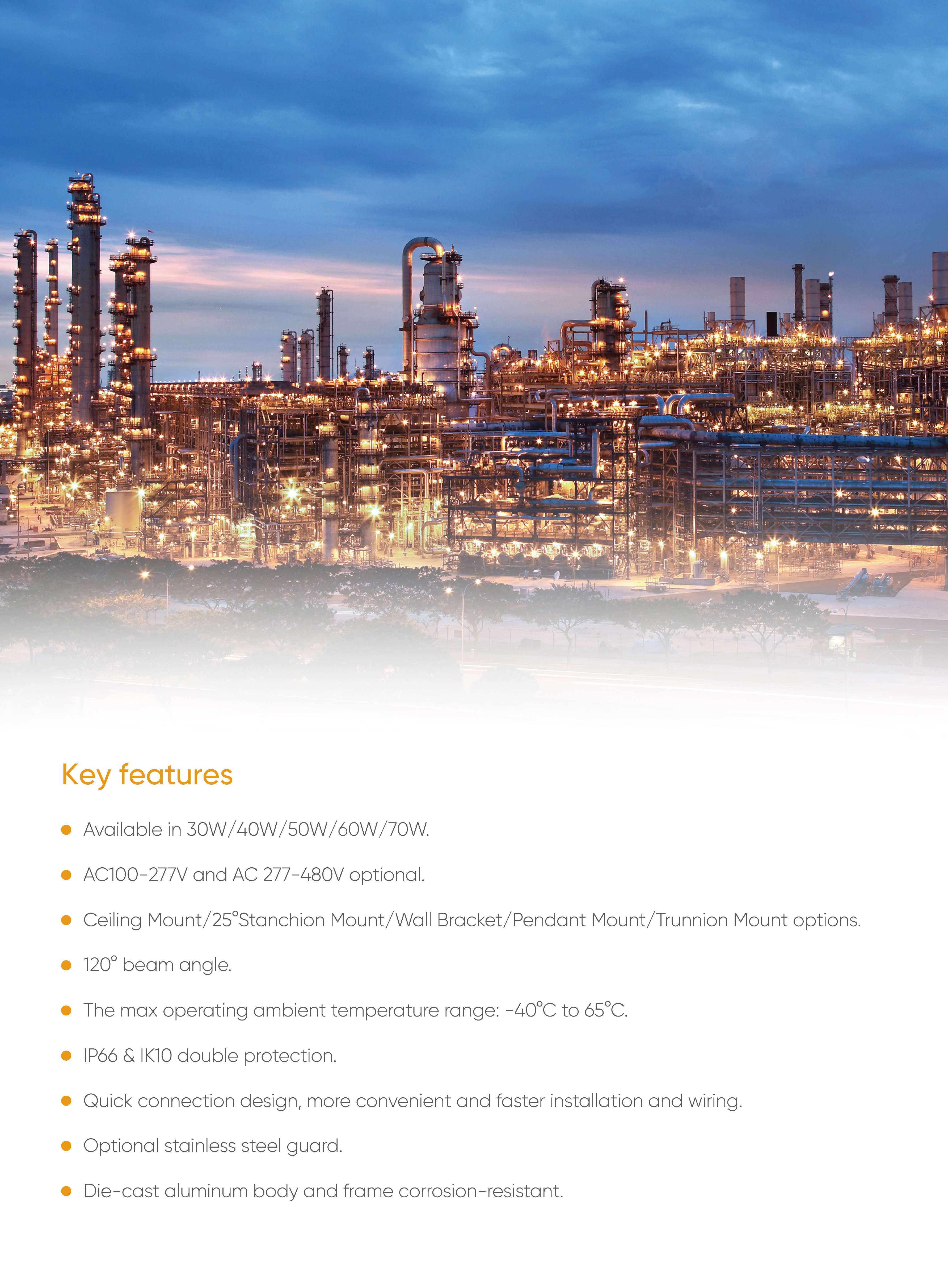

HA03 explosion proof light key features 6

IECEx:

Ex db IIC T6/T5 Gb
Ex tb IIIC T80℃/T95℃ Db IP66

ATEX:

II 2G Ex db IIC T6/T5 Gb
II 2D Ex tb IIIC T80℃/T95℃ Db IP66

NEC & CEC:

Class I, Division 1, Groups B, C, D

Class I, Division 2, Groups B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

UL 1598 wet locations

UL 1598A marine outside type

Type 4X, IP66

Class l, Zone 1, Group IIB plus hydrogen

Class l, Zone 2, Group IIB plus hydrogen

Zone 20, Zone 21, and Zone 22

Series Code	HA03
Power	30W, 40W, 50W, 60W, 70W
Efficacy	140lm/W
Input Voltage	100-277Vac / 277-480Vac, 50 / 60 Hz, 50 / 60 Hz
Power Factor	>0.90
Surge Protection	4kV line-line, 6kV line-earth;6kV line-line, 10kV line-earth
IP Rating	IP66
IK Rating	IK10
CCT	5000K (2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500K optional)/Red, Green, Blue, Amber
CRI(Ra)	70, 80, 90
Mounting Option	Ceiling mount / 25° Stanchion mount / Wall bracket Pendant mount / Trunnion moun
Warranty	5 Years
