HA05 Conqueror LED Explosion-proof Highbay Light for Zone 2 and C1D2

High-bay/Low-bay C1D2 Zone 2

Conqueror provides a complete range of products from 4200 to 33600 lumens, equivalent to 70W to 1000W HID fixtures, for your hazardous lighting project. Our unique design ensures seamless integration into your existing setup.

Material: Copper-free Aluminum
Lumen Output: 4200–33600 LM
Color Options: Warm to Cool White, plus RGB/Amber LEDs available
Emergency Backup: Available for ≤ 150W model
Cable Entry Sizes: 3/4"NPT, 1"NPT, M20×1.5, M25×1.5, 1-1/4"NPT, 1-1/2"NPT
Protection Ratings: IP66 & IK08
Operating Temperature Range: -40°C to 65°C

Product Details
Certifications
Specifications

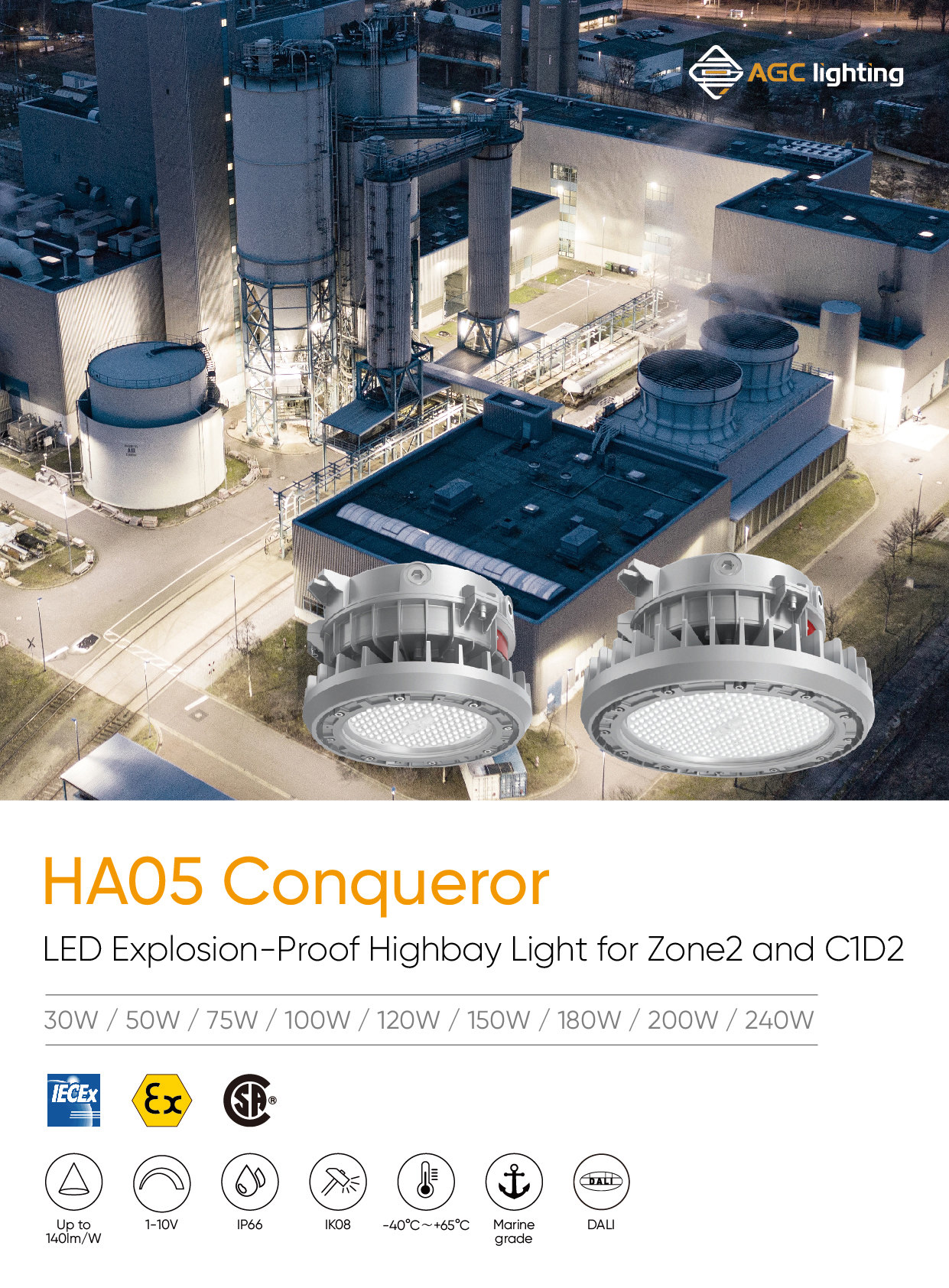

HA05 explosion proof lights for zone 2 c1d2(1)

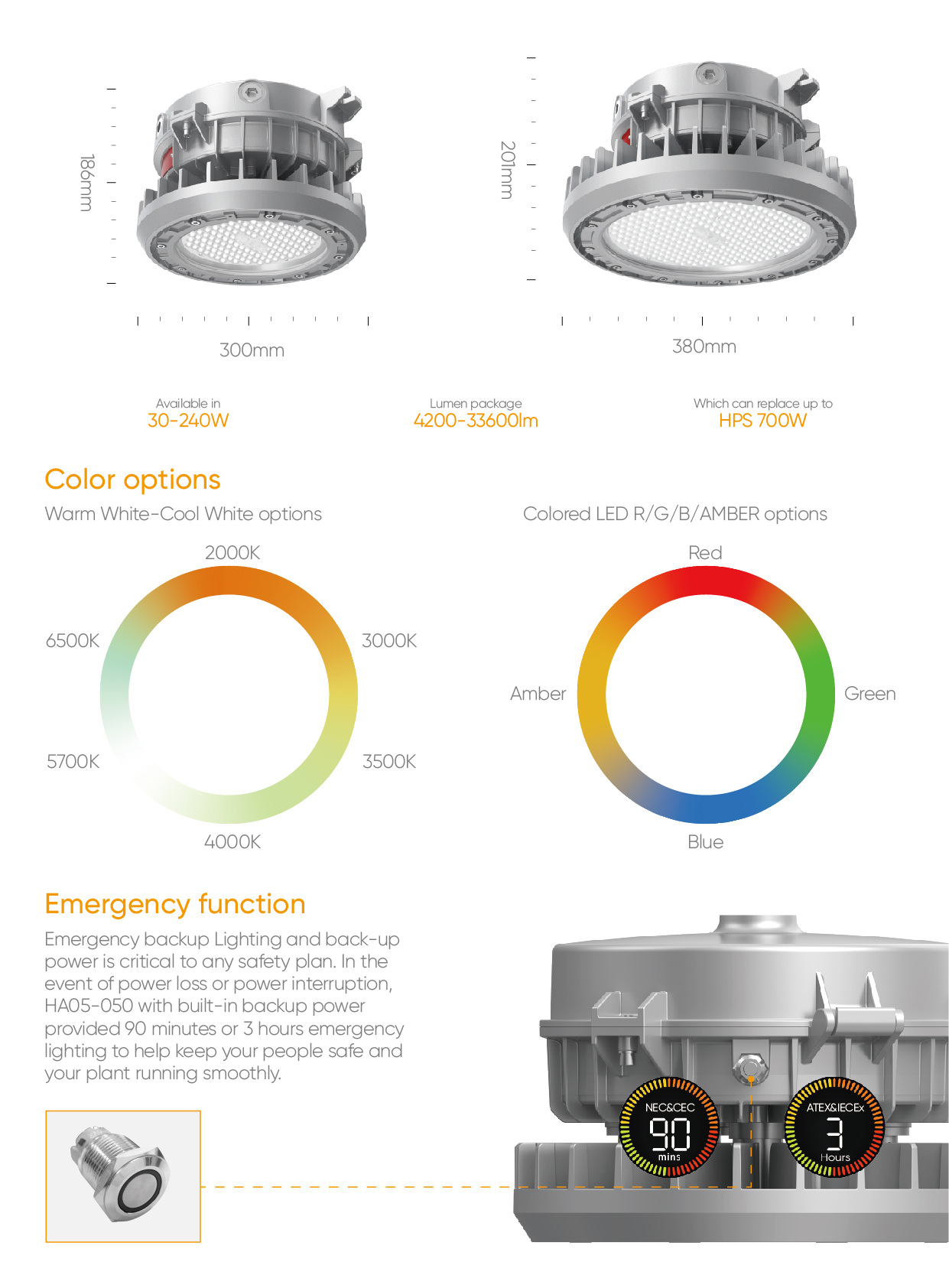

HA05 explosion proof lights color options and emergency function(2)

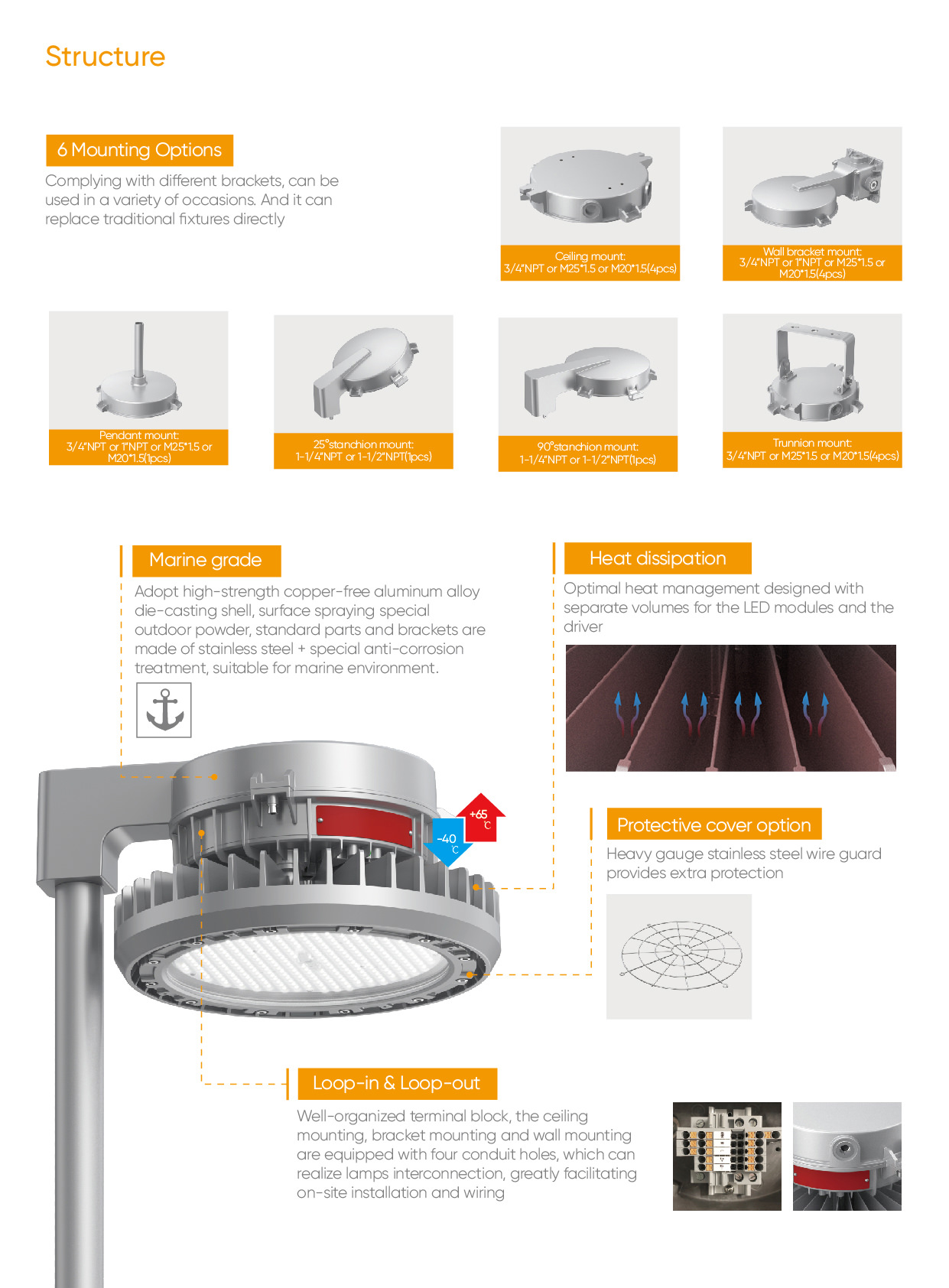

HA05 explosion proof lights mounting options and marine grade quality(3)

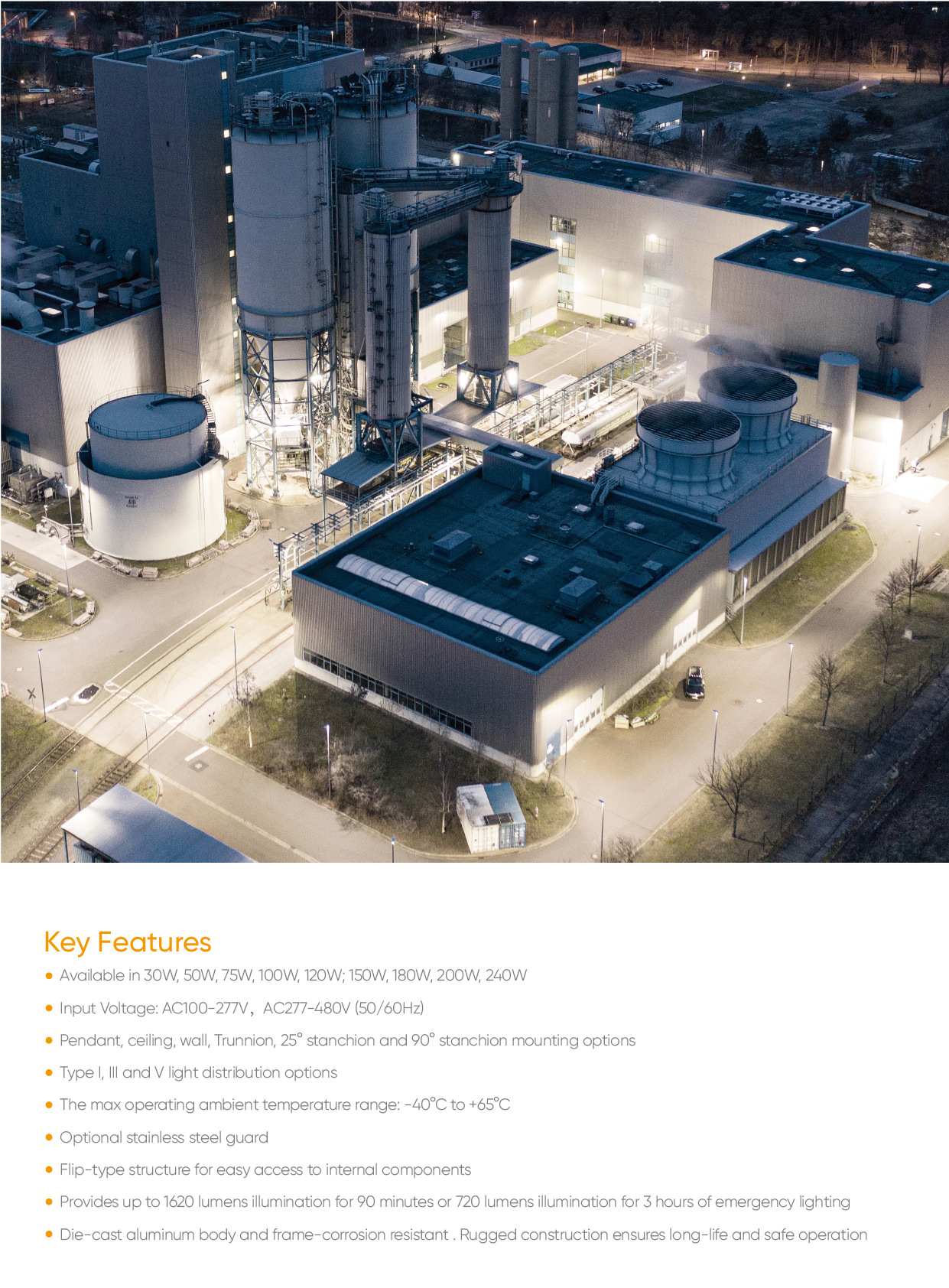

HA05 explosion proof lights key features (4)

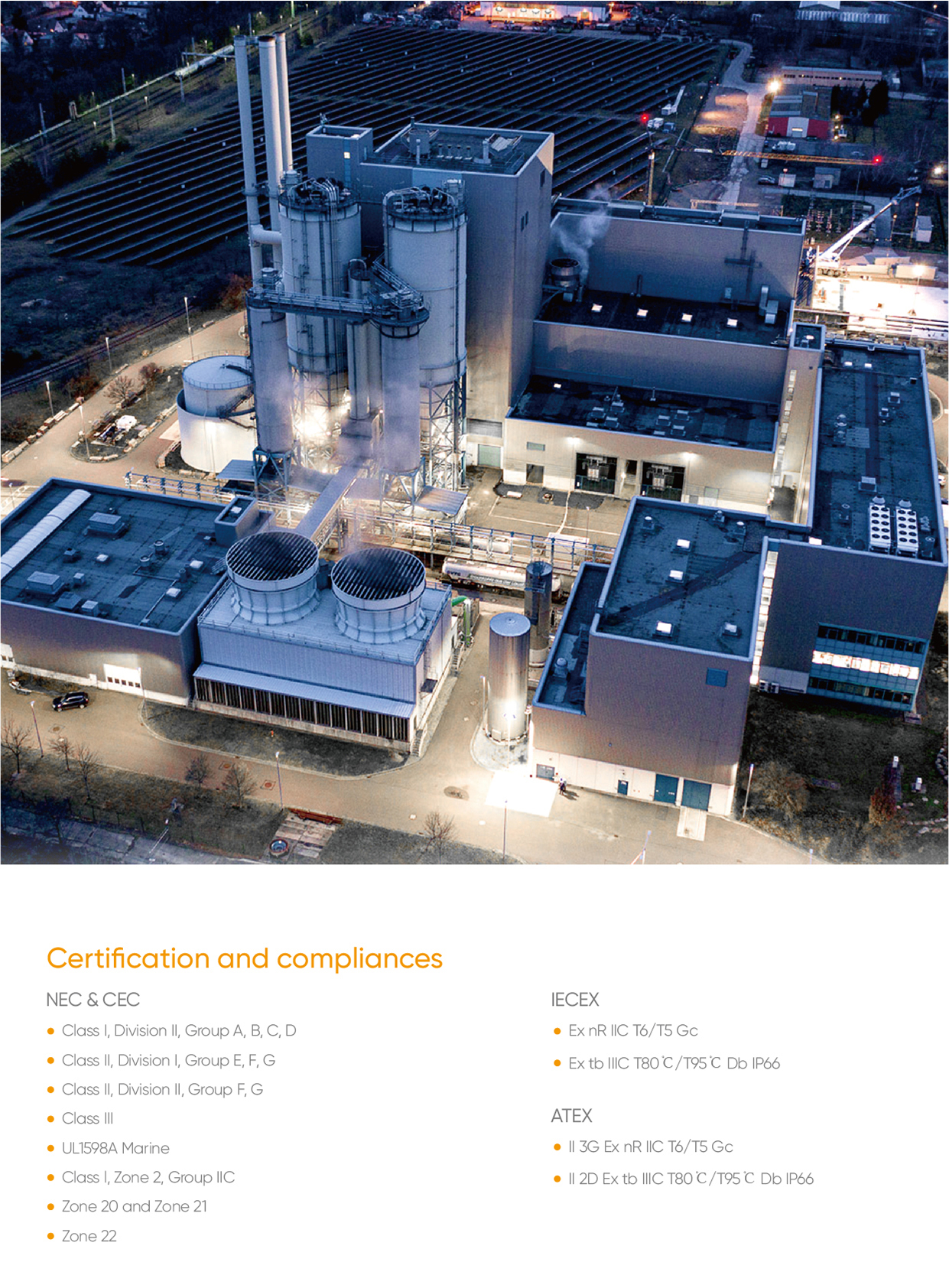

HA05 explosion proof lights certification and compliances (5)

NEC & CEC:

Class I, Division 2, Group A, B, C, D

Class II, Division 1, Group E, F, G

Class II, Division 2, Group F, G

Simultaneous Presence

UL 1598 wet locations

UL 1598A marine outside type

Type 4X, IP66

Class l, Zone 2, Group IIC

Zone 20, Zone 21, and Zone 22

IECEx:

Ex eb mb IIC T5 Gb

Ex tb IIIC T95℃ Db IP66

ATEX:

II 2G Ex eb mb IIC T5 Gb

II 2D Ex tb IIIC T95℃ Db IP66

Series Code	HA05
Power	30W, 50W, 75W, 100W, 120W, 150W, 180W, 200W, 240W
Input Voltage	100-277Vac, 50 / 60 Hz, 50 / 60 Hz
Power Factor	>0.90
Surge Protection	10kV line-line, 10kV line-earth
Corrosion Class	C4
IP Rating	IP66
IK Rating	IK08
CCT	5000K (2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500K optional)/Red, Green.Blue, Amber
CRI(Ra)	70, 80, 90
Operating Temperature	0°C to + 60°C (32°F to +140°F)
Mounting Option	Celling mount / Trunnion mount /Wall bracket / Pendant mount / 25° Stanchion mount / 90° Stanchion mount
Warranty	5 Years
