HA05 Premium: Zone 1 Upgrade

Zone 1

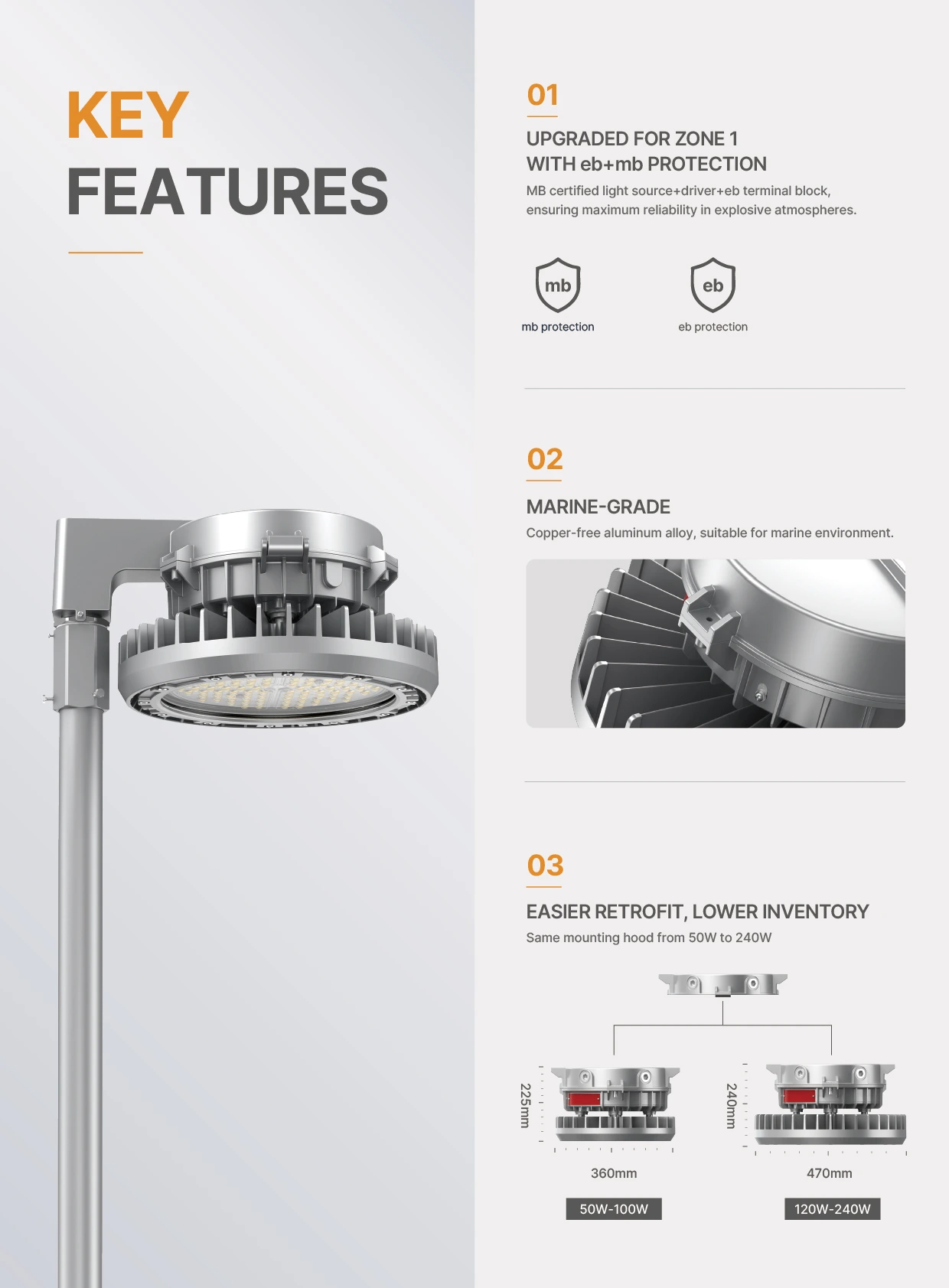

Built on the HA05 Conquer, the new HA05 Premium is now Zone 1 certified. It keeps the same wattage range and mounting method while being better suited to harsh, high-risk, hazardous environments.

Material: Copper-free Aluminum;
Lumen Output: 4200LM–33600 LM;

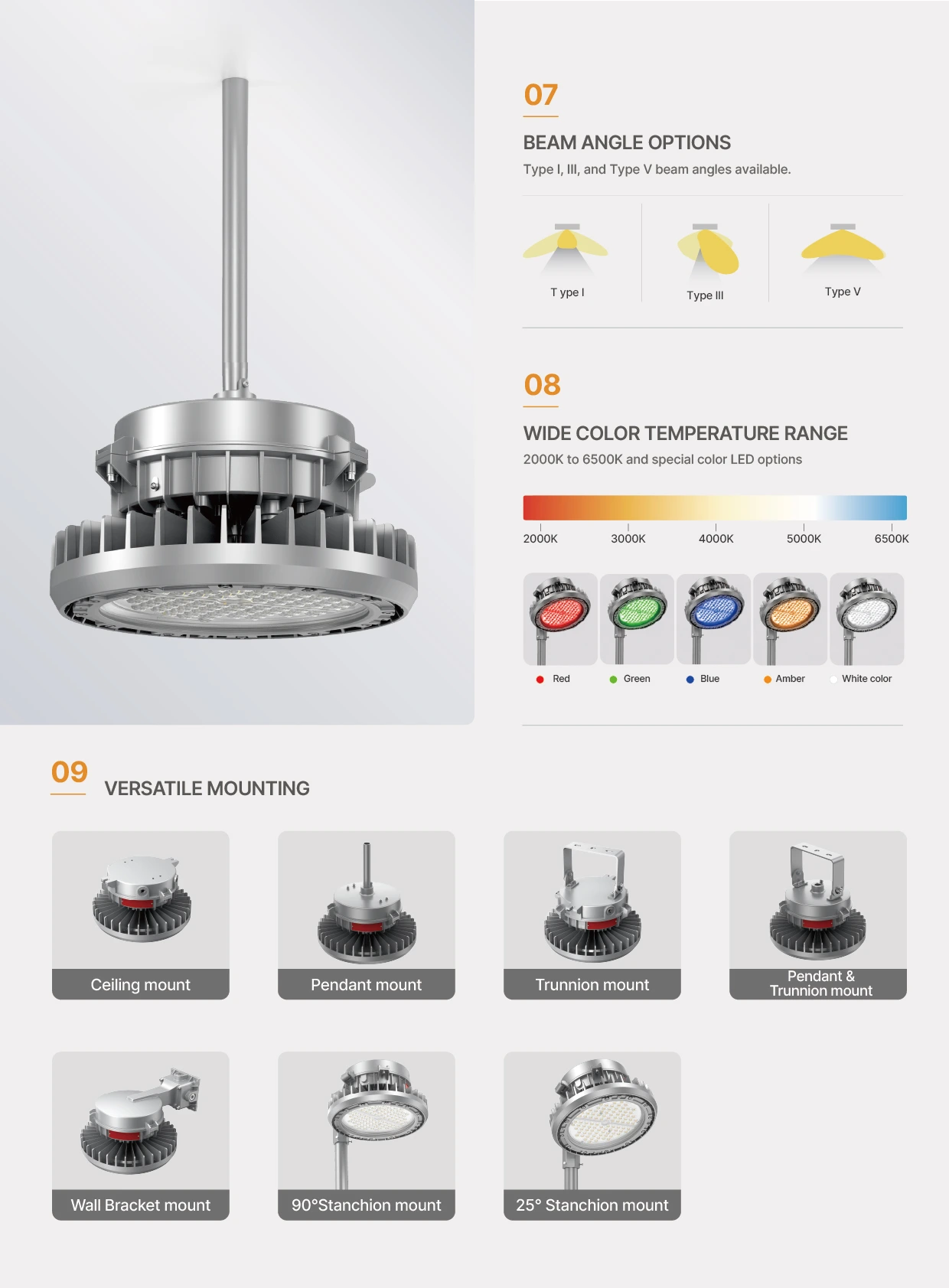

Color Options: Warm to Cool White, plus RGB/Amber LEDs available;
Clear glass and diffused glass optional;

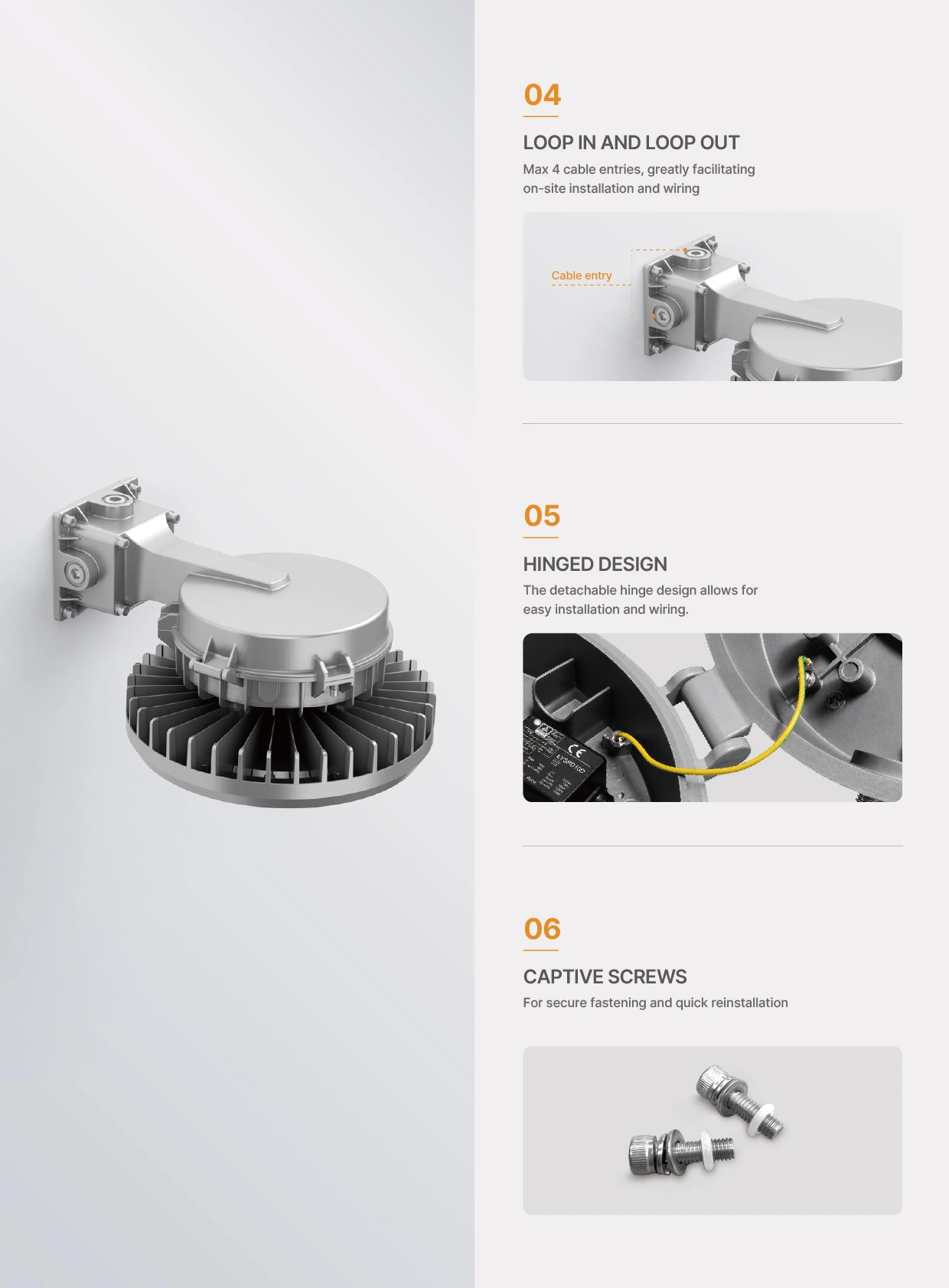

Pendant mount, Ceiling mount, Trunnion mount, Wall mount, 25° Stanchion mount, 90° Stanchion mount;
Protection Ratings: IP66 & IK08;
Operating Temperature Range: -40°C to 65°C.

Certifications
Specifications

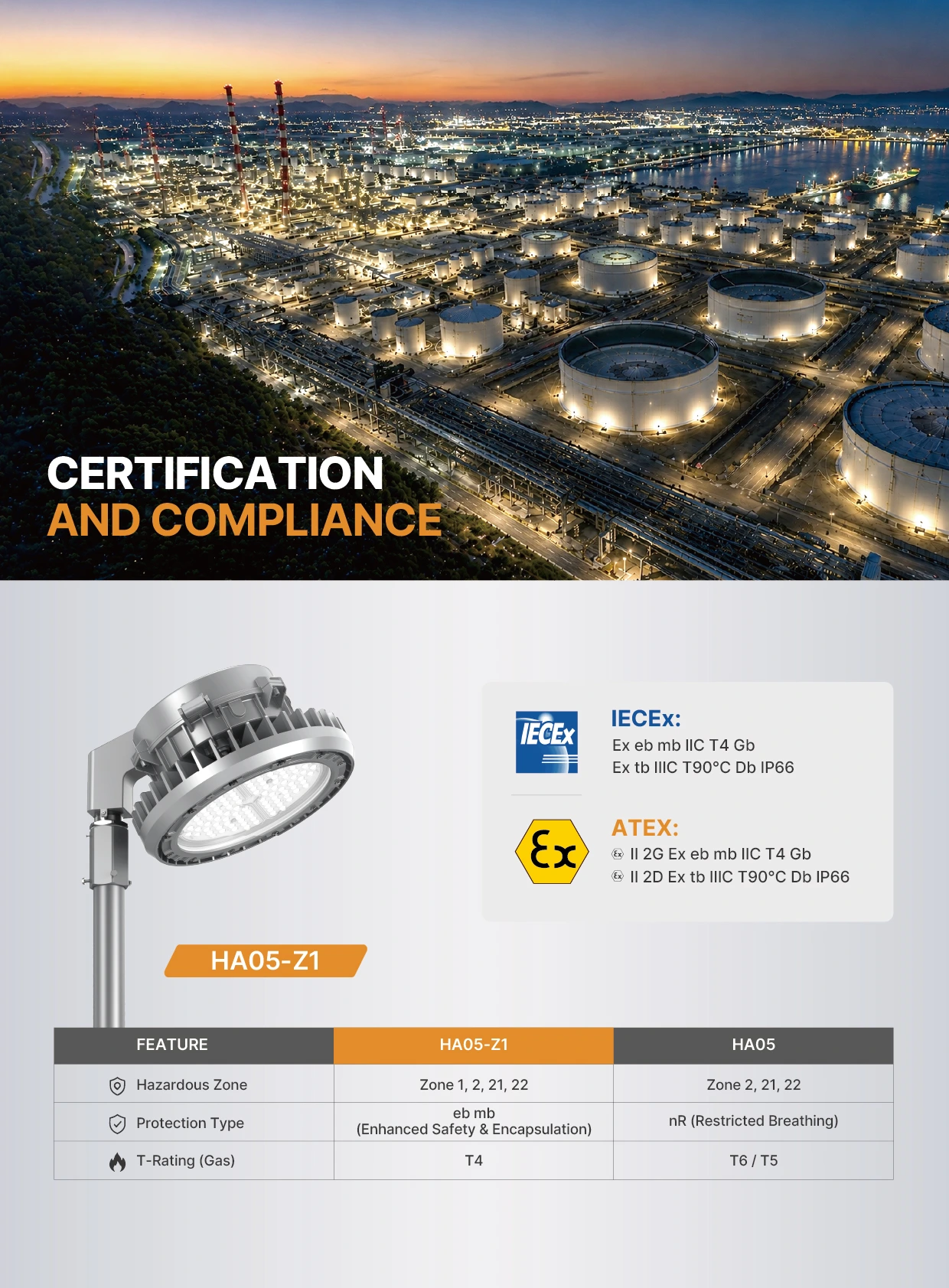

IECEx:

Ex eb mb IIC T4 Gb
Ex tb IIIC T90℃ Db IP66

ATEX:

II 2G Ex eb mb IIC T4 Gb
II 2D Ex tb IIIC T90℃ Db IP66

INTERESTED?
Contact Us for More Information

Get Your Hazardous Area Lighting Solutions

Are you ready to discuss your project? Our team is here to help you design the perfect products.
