HA06 Supernova LED Explosion-Proof Linear Light for Zone 2 and C1D2

Linear Lights Zone 2 C1D2

Linear luminaires are the most common type of hazardous indoor lighting, so we know how important it is to find the right solution. Supernovaʼs special optimized luminaire costs and product weights, make it the perfect choice for projects with tight budgets.

Material: Fiberglass Reinforced Polycarbonate (FRP)
Wattage Options:

2FT: 20W, 30W, 40W, 50W

4FT: 60W, 70W, 80W, 100W

Lumen Output: 3200lm – 16000lm
Color Options: Warm White to Cool White, plus Colored LED (R/G/B/Amber) available
Cover Options: Diffused PC Cover or Clear PC Cover
Emergency Backup: Available
Cable Entry Sizes: 3/4"NPT, 1"NPT, M25×1.5, M32×1.5
Protection Ratings: IP66 & IK08
Operating Temperature Range: -40°C to 55°C

Product Details
Certifications
Specifications

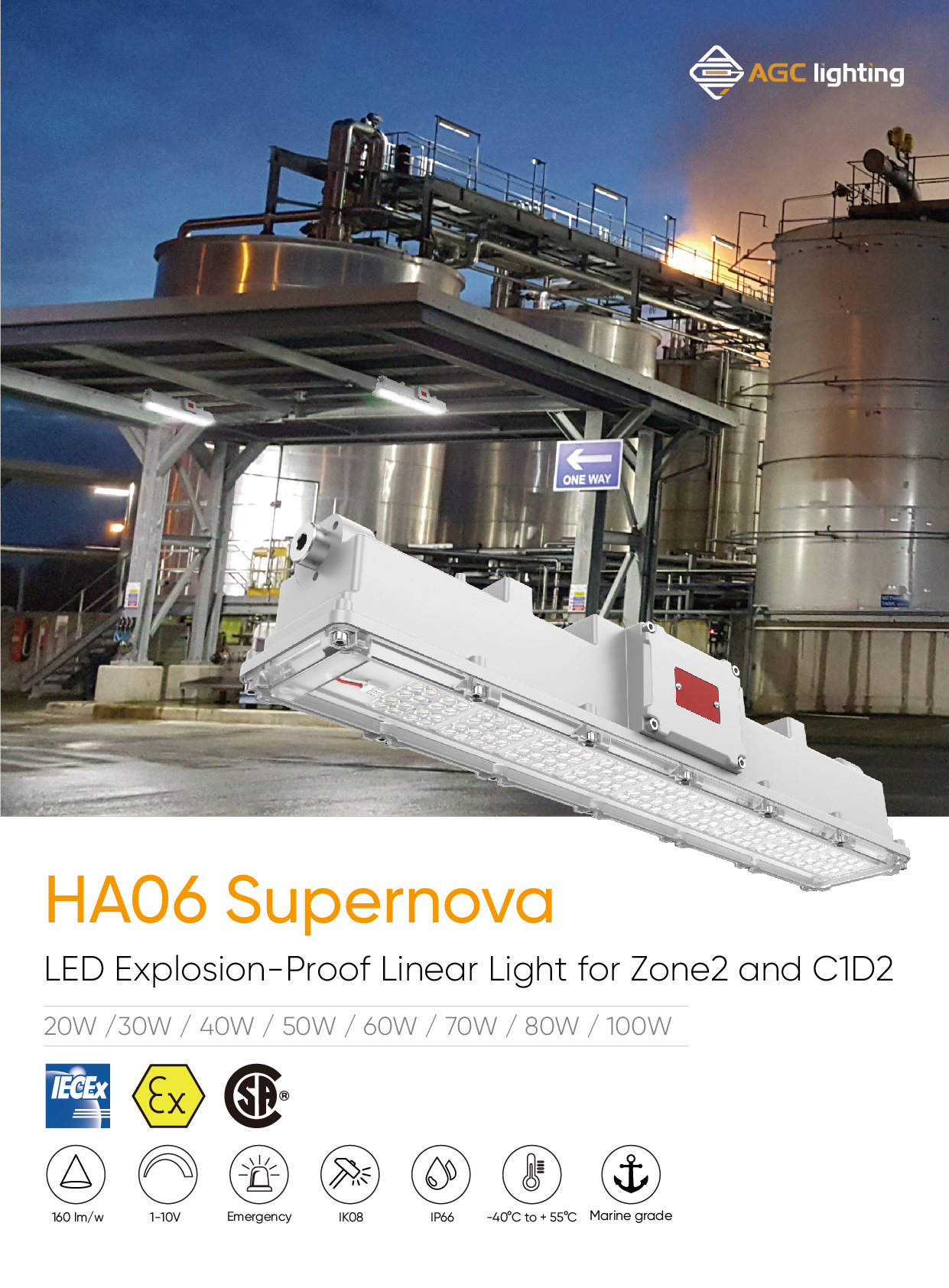

HA06 explosion proof light for zone2 c1d2 01

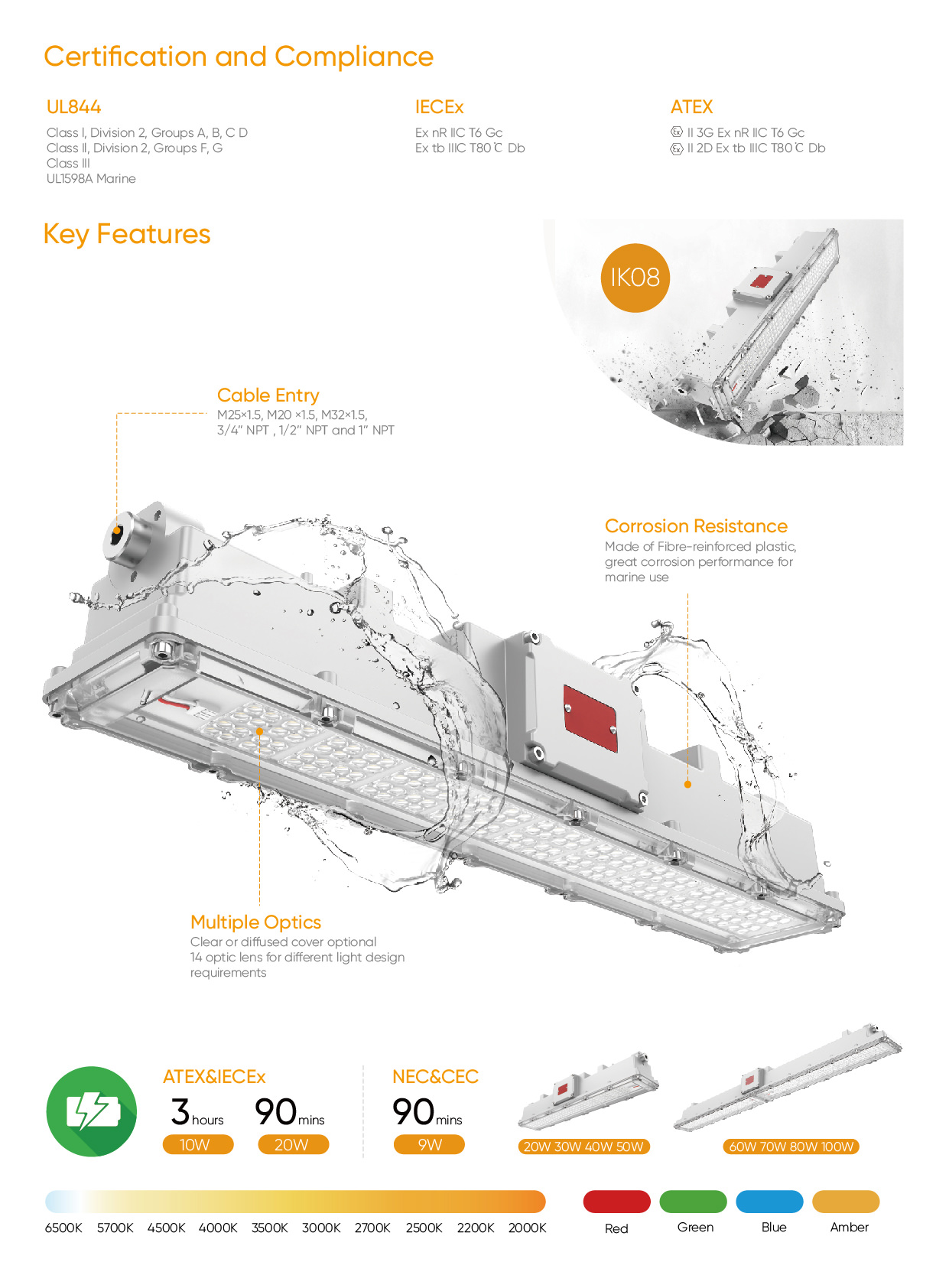

HA06 explosion proof light certification and fey features 02

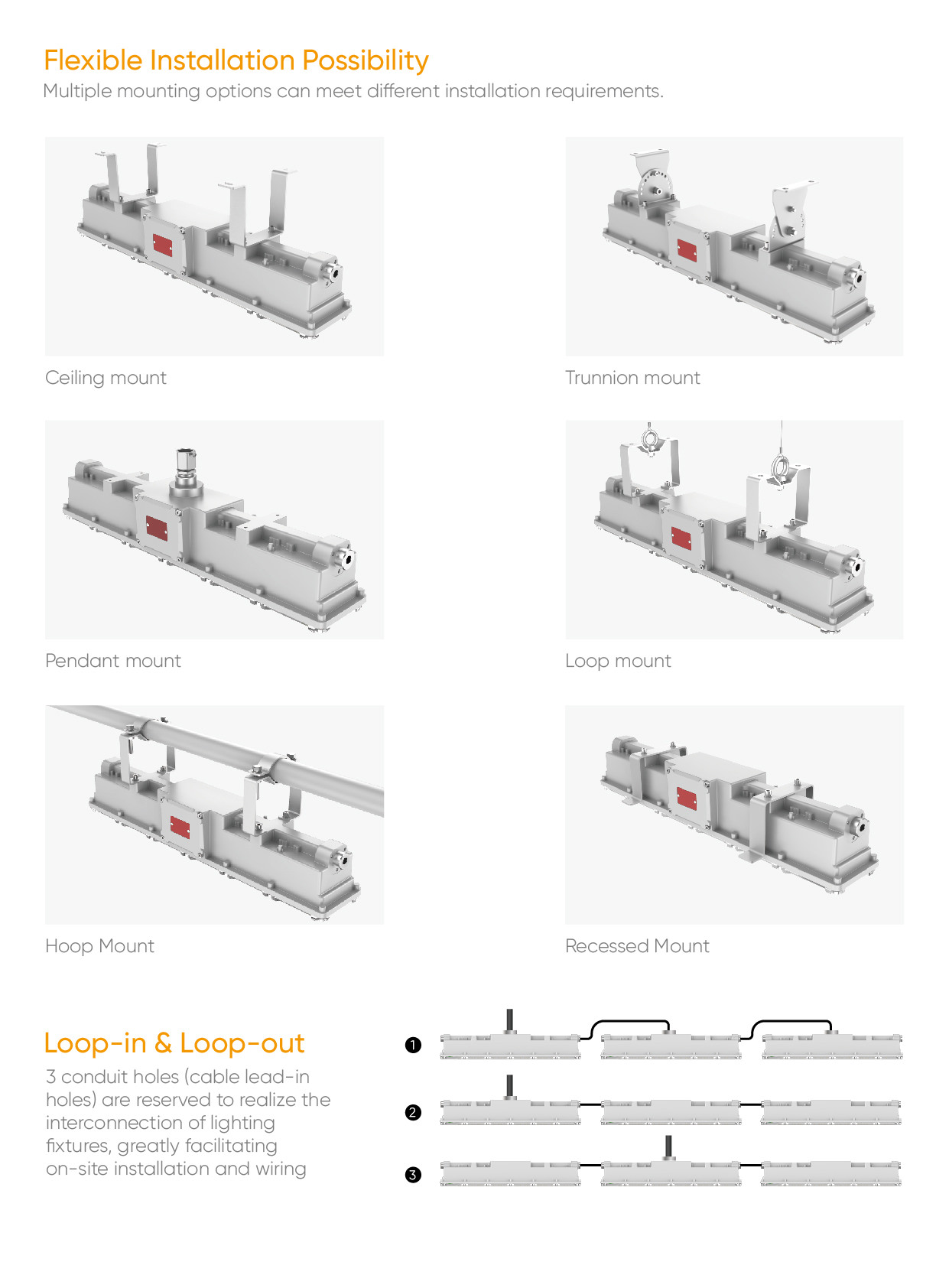

HA06 explosion proof light flexible installation 03

IECEx:

Ex eb mb IIC T5 Gb

Ex tb IIIC T95℃ Db IP66

ATEX:

II 2G Ex eb mb IIC T5 Gb

II 2D Ex tb IIIC T95℃ Db IP66

NEC & CEC:

Class I, Division 2, Groups A, B, C, D

Class II, Division 2, Groups F, G

Class III

Class I, Zone 2, Group IIC

Zone 22

Series Code	HA06
Power	20W, 30W, 40W, 50W, 60W, 70W, 80W, 100W
Efficacy	160lm/W
Input Voltage	100-277Vac/277-480Vac(No option for 20W), 50 / 60 Hz, 50 / 60 Hz
Power Factor	>0.90
Surge Protection	4kV line-line, 6kV line-earth; 6kV line-line, 10kV line-earth
Control	1-10V
IP Rating	IP66
IK Rating	IK08
CCT	5000K (2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5700K, 6500K optional)/Red, Green.Blue, Amber
CRI(Ra)	70, 80, 90
Mounting Option	Ceiling mount / Trunnion mount / Pendant mount / Loop Mount / Hoop Mount / Recessed Mount

Classifications

Product Type

Harsh Area

HA06 Supernova LED Explosion-Proof Linear Light for Zone 2 and C1D2

IECEx:

ATEX:

NEC & CEC:
