HA08 Zone1 Explosion-proof Highbay with EM Backup

The HA08 offers a robust and compact solution for emergency

lighting in hazardous areas. Certified by IECEx and ATEX, this LED

light is engineered to withstand harsh conditions and provide

reliable illumination.

Material: Copper-free Aluminum
Wattage Options: 30W, 40W, 50W, 60W, 75W, 100W

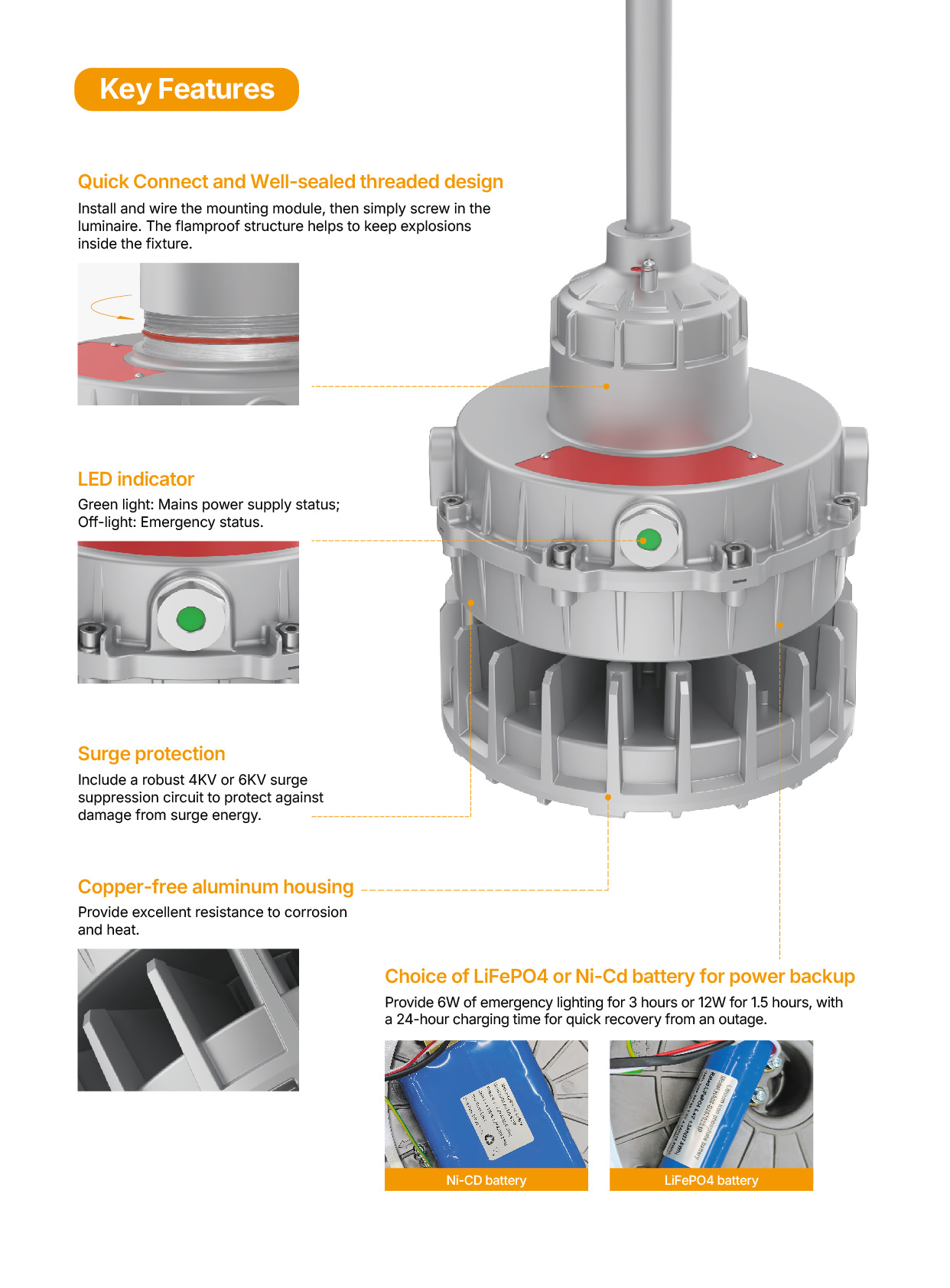

Emergency Function: Standard Equipped
Color Options: Warm White to Cool White, plus Colored LED (R/G/B/Amber) available

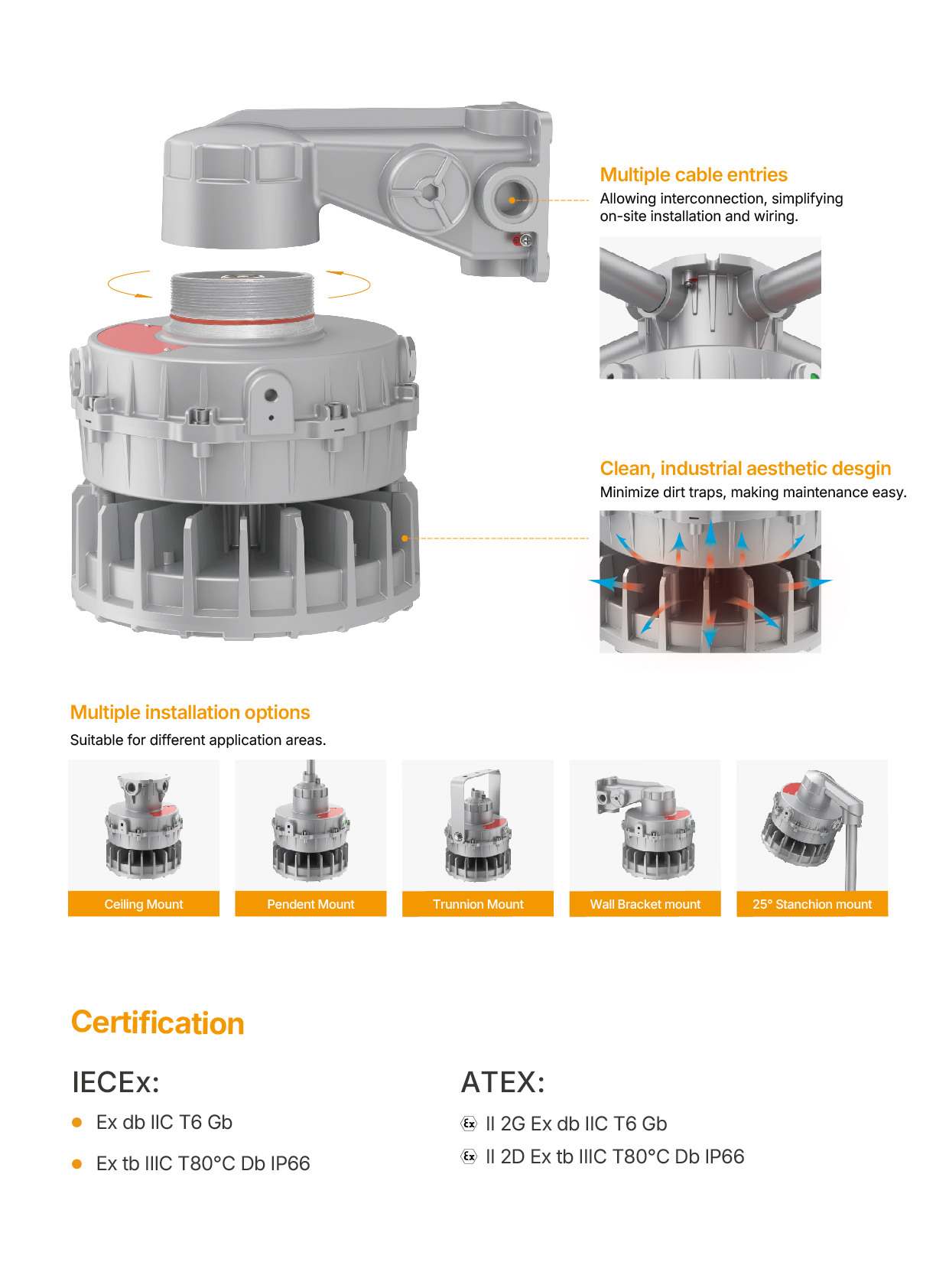

Cable Entry Sizes: 3/4"NPT, 1"NPT, M20×1.5, M25×1.5
Protection Ratings: IP66 & IK10
Operating Temperature Range: 0°C to 55°C

Ex db IIC T6 Gb

Ex tb IIIC T80℃ Db IP66

II 2G Ex db IIC T6 Gb

II 2D Ex tb IIIC T80℃ Db IP66

Series Code	HA08
Power	30W, 40W, 50W, 60W, 75W, 100W
Input Voltage	120-277Vac, 50 / 60 Hz, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	L-N: 4KV, L/N-E: 6KV; L-N: 6KV, L/N-E: 10KV
Corrosion Class	C4
Class Electrical Equipment	Class I
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K
CRI(Ra)	70, 80
Mounting Option	Ceiling mount / Pendant / Trunnion mount / Wall bracket mount / 25° Stanchion mount
Warranty	Standard Warranty: 5 Years Battery: 3 Years Years
