HA10 Mini Low Bay / Jelly Jar Light

C1D2 Zone 2 High-bay/Low-bay

The HA10 is a lightweight, explosion-proof LED light designed for various applications. It features adjustable power, different optics choices, and multiple mounting options, providing flexibility and adaptability for different hazardous environments.

Material: Copper-free Aluminum
Wattage Options: 30W, 40W, 50W, 60W, 75W
Design: Compact & Lightweight (≈5.5 kg) for Effortless Handling
Color Options: Warm White to Cool White, plus Colored LED (R/G/B/Amber) available
Emergency Backup: Available
Power Adjustment: Dip Switch for Selectable Power Output
Lens Options: Flat Glass or Global Glass
Cable Entry Sizes: 1/2"NPT, 3/4"NPT, 1"NPT, M20×1.5, M25×1.5
Protection Rating: IP66 & IK08 (Flat Glass Version)
Operating Temperature Range: -40°C to 65°C

Product Details
Certifications
Specifications

HA10 explosion proof low bay jelly jar（1）

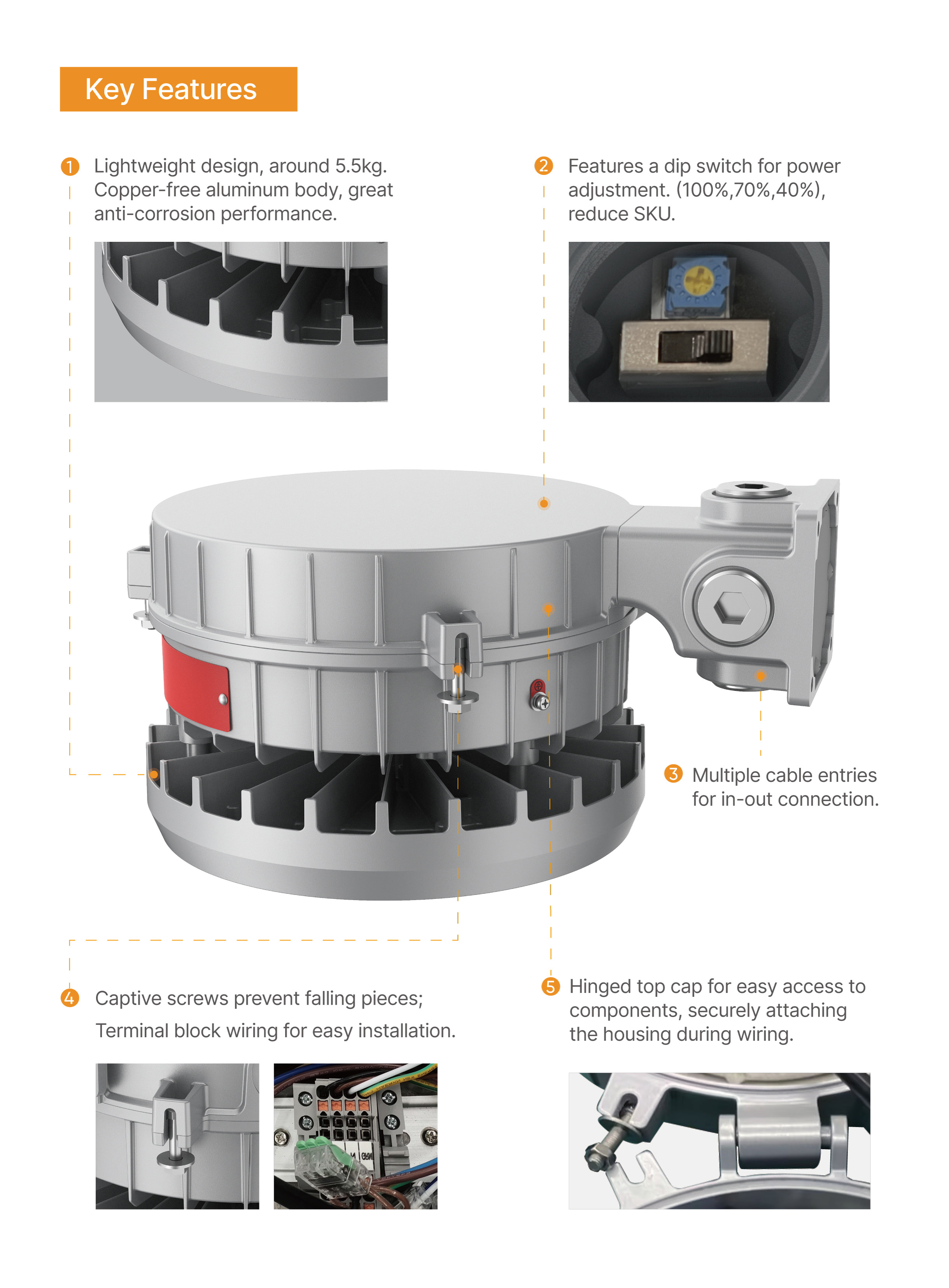

HA10 explosion proof light lighweight design（2）

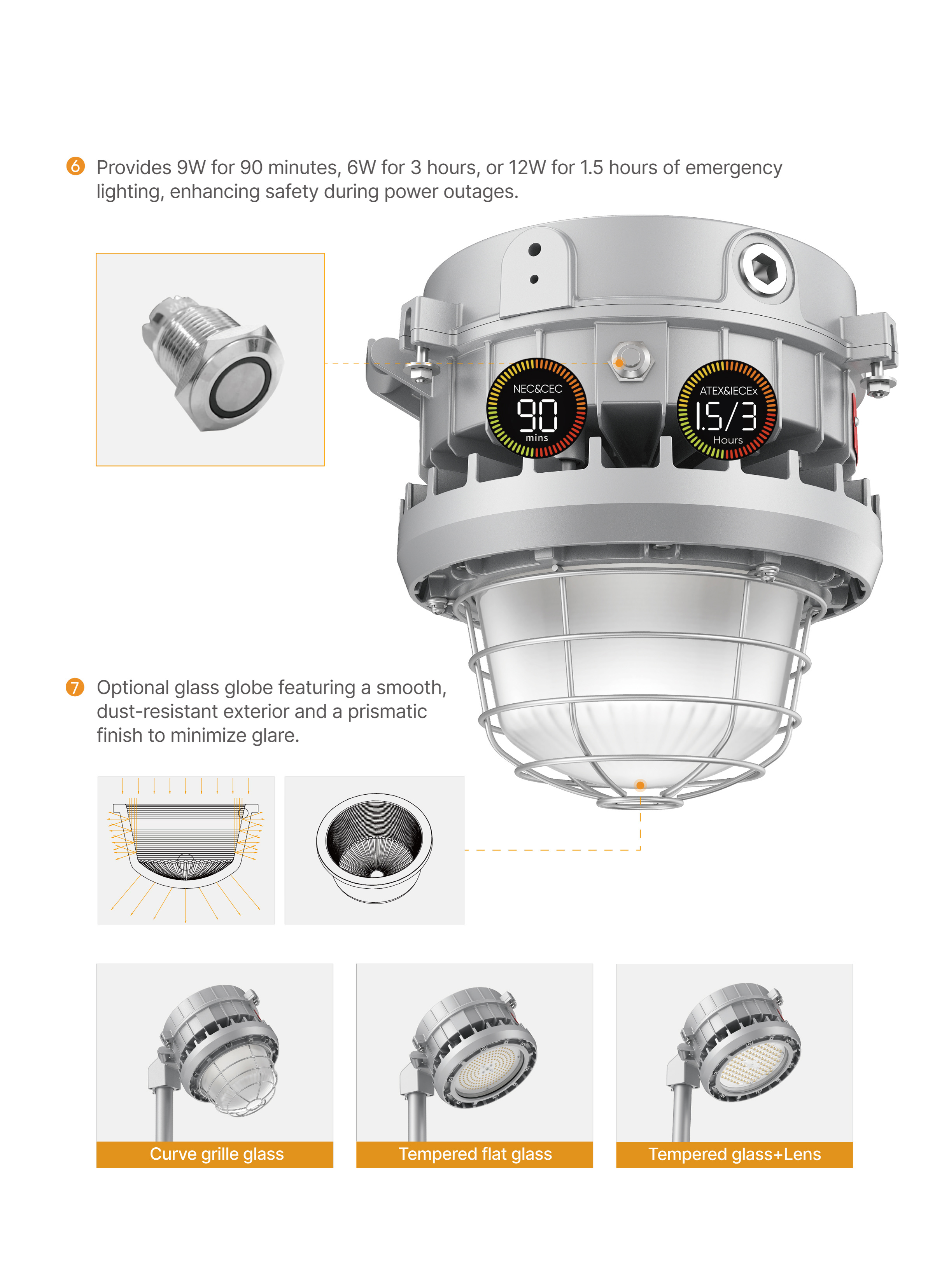

HA10 explosion proof light with emergency backup and optional glass globe（3）

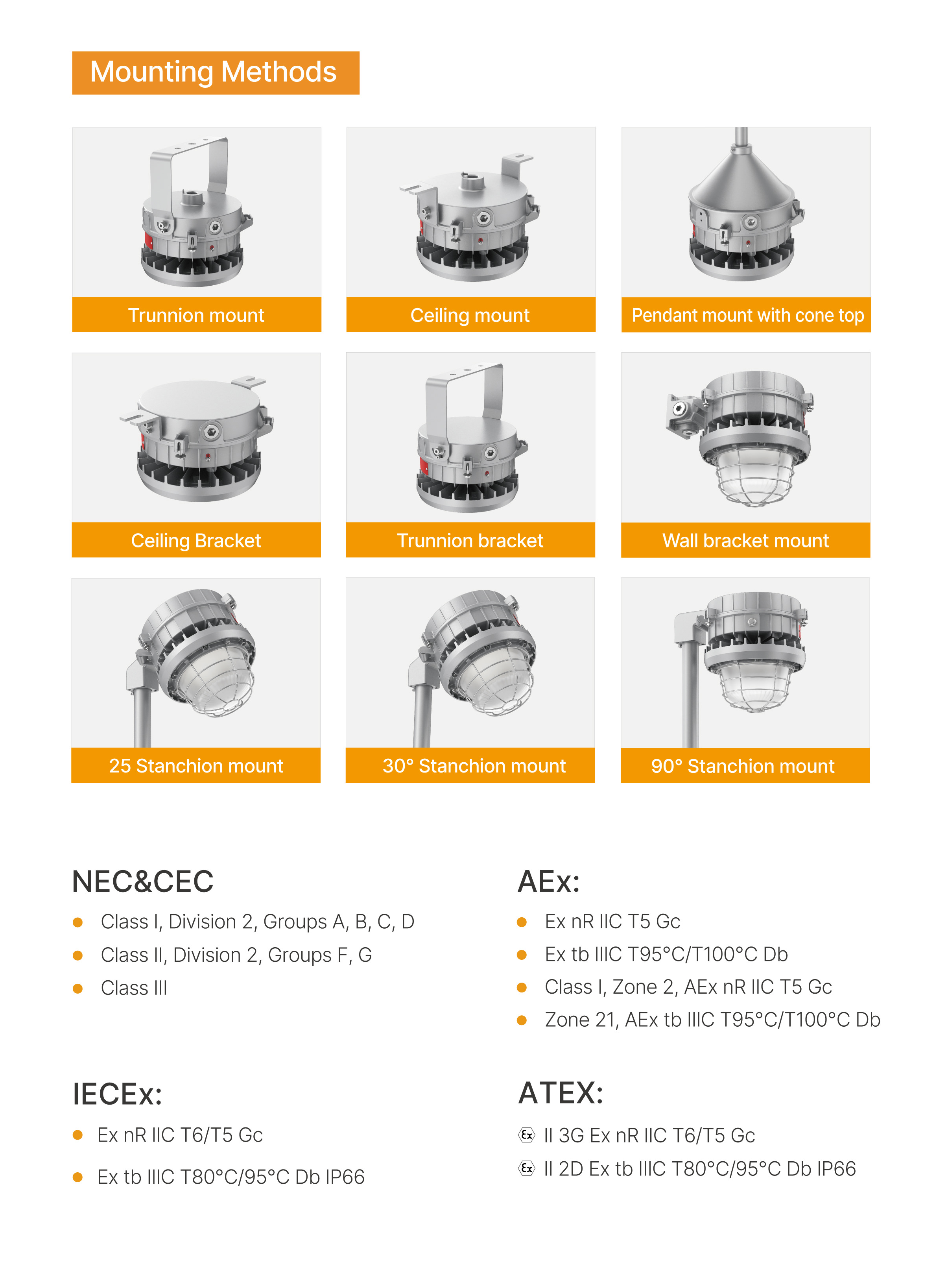

HA10 explosion proof light mounting methods and certifications（4）

IECEx:

Ex nR IIC T6/T5 Gc

Ex tb IIIC T80/T95℃ Db IP66

ATEX:

II 3G Ex nR IIC T6/T5 Gc

II 2D Ex tb IIIC T80/T95℃ Db IP66

NEC & CEC:

Class I, Division 2, Groups A, B, C, D

Class II, Division 2, Groups F, G

Class III

Type 4X IP66

AEx:

Ex nR IIC T5 Gc

Ex tb IIIC T95℃/T100℃ Db

Class I, Zone 2, AEx nR IIC T5 Gc

Zone 21, AEx tb IIIC T95℃/T100℃ Db

Series Code	HA10
Power	30W, 40W, 50W, 60W, 75W
Power Factor	>0.95
Surge Protection	10kV
Corrosion Class	C4
IP Rating	IP66
IK Rating	IK08
CCT	4000K, 5000K
CRI(Ra)	70, 80
Mounting Option	Ceiling mount / Trunnion mount / Pendant / Pendant & Trunnion mount / Wall bracket mount / 25° Stanchion mount / 30° Stanchion mount / 90° Stanchion mount
Warranty	5 Years

Classifications

Product Type

Harsh Area

HA10 Mini Low Bay / Jelly Jar Light

IECEx:

ATEX:

NEC & CEC:

AEx:
