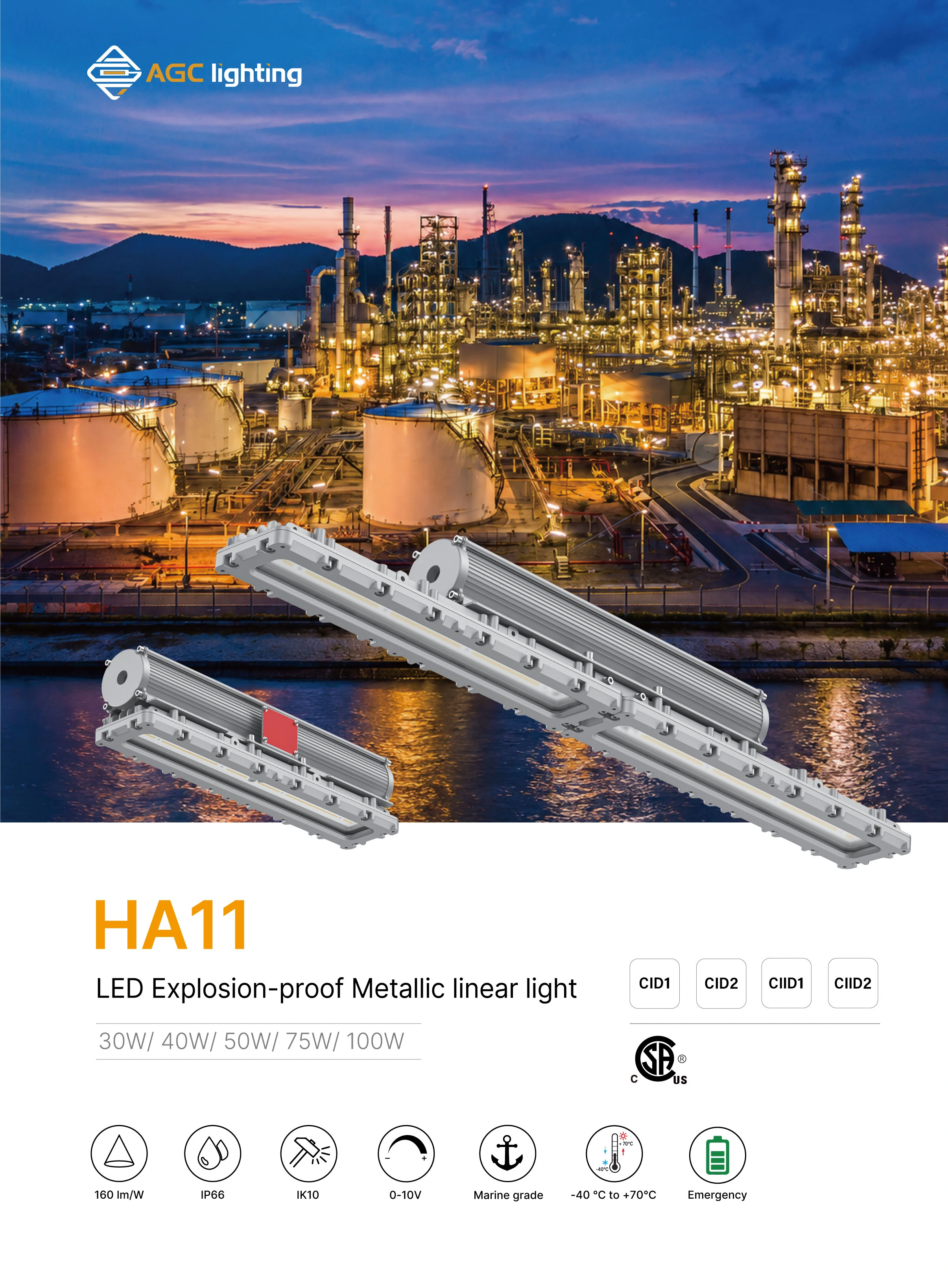

HA11 LED Explosion-proof Linear Light

HA11 LED Explosion-proof Linear Light



HA11 is available in two lengths (600mm and 1200mm), suitable for narrow aisles and wider pathways. Optional emergency drivers guarantee continuous operation during power outages, while the integrated thermal management system ensures stable output, even in high temperatures.



  • Material: Copper-free Aluminum
  • Lumen Output: 4650lm – 15500lm
  • Color Options: Warm White to Cool White, plus Amber color available
  • Dimming Function: 1-10V & 0-10V Dimming Compatible
  • Emergency Backup: Available
  • Cable Entry Sizes: 1/2"NPT, 3/4"NPT, M20×1.5, M25×1.5
  • Protection Ratings: IP66 & IK09
  • Operating Temperature Range: -40°C to 65°C
NEC & CEC:
Class I,Division 1,Groups C,D
Class I,Division 2,Groups A,B,C,D
Class II,Division 1,Groups E,F,G
Class II,Division 2,Groups F,G
Class III
Suitable for Use Wet Locations
Marine Outside Type (Salt Water)
NEMA 4X
IP66


NEC505:
Ex db eb IIC T6/T5 Gb
Ex tb IIIC T80℃/T95℃ Db IP66
Class I, Zone 1: AEx db eb IIC T6/T5 Gb
Zone 21, AEx tb IIIC T80℃/T95℃ Db IP66





Series Code HA11
Power 30W, 40W, 50W, 60W, 80W, 100W
IP Rating IP66

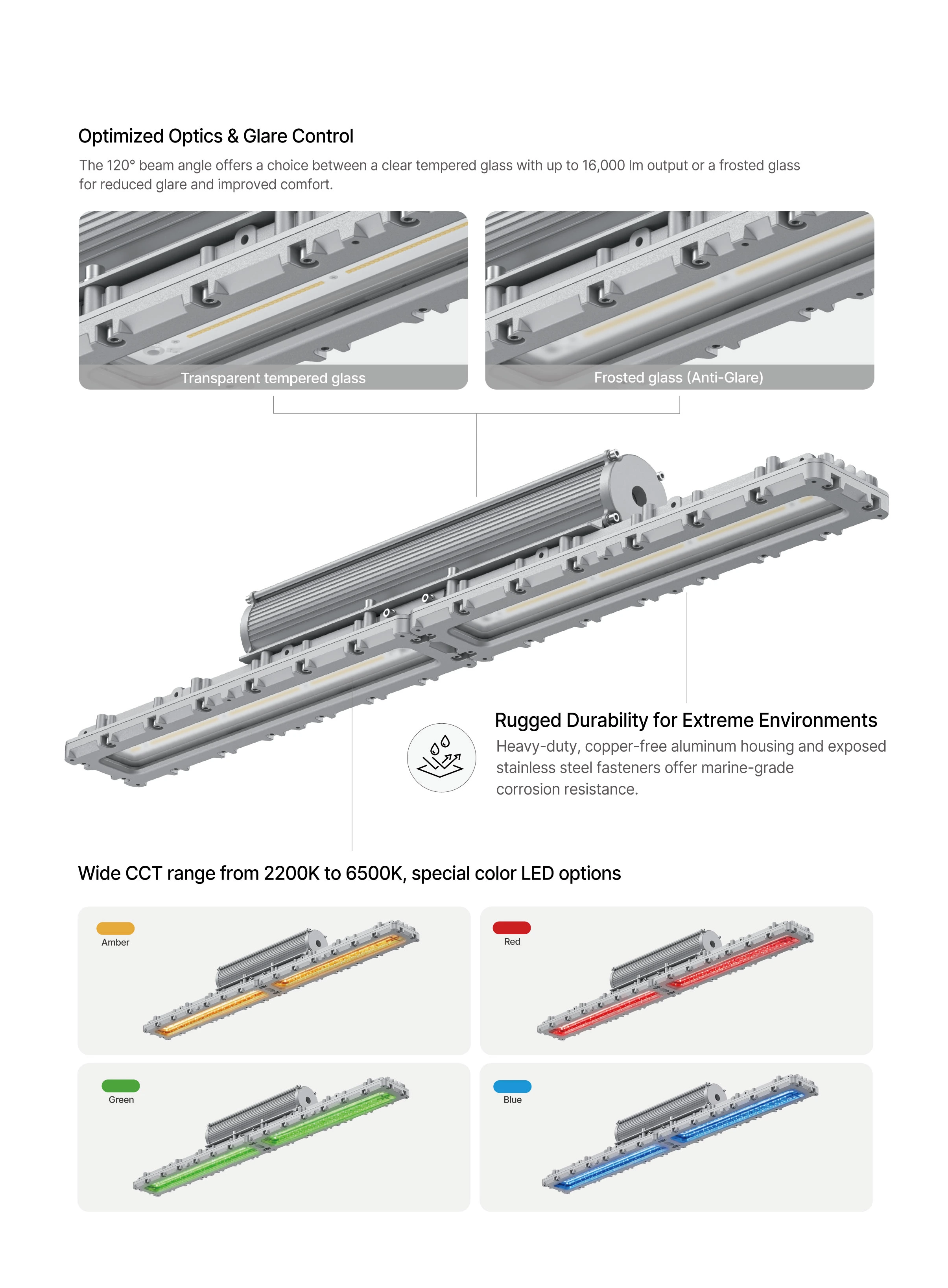

CCT White (3000K - 6500K), Amber
Operating Temperature -40℃ to 65℃

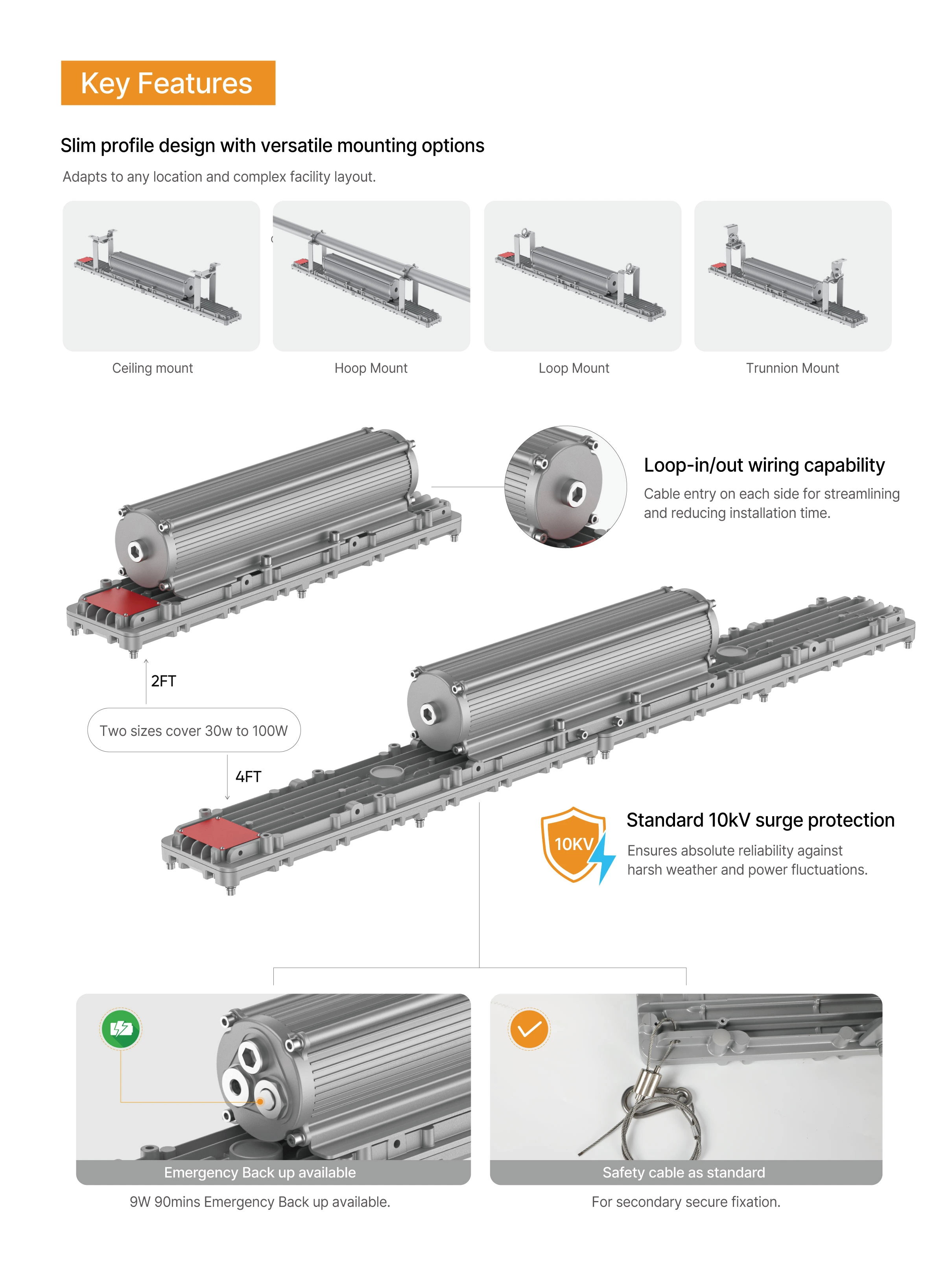

Mounting Option Ceiling Mount, Trunnion Mount, Loop Mount, Hoop Mount
