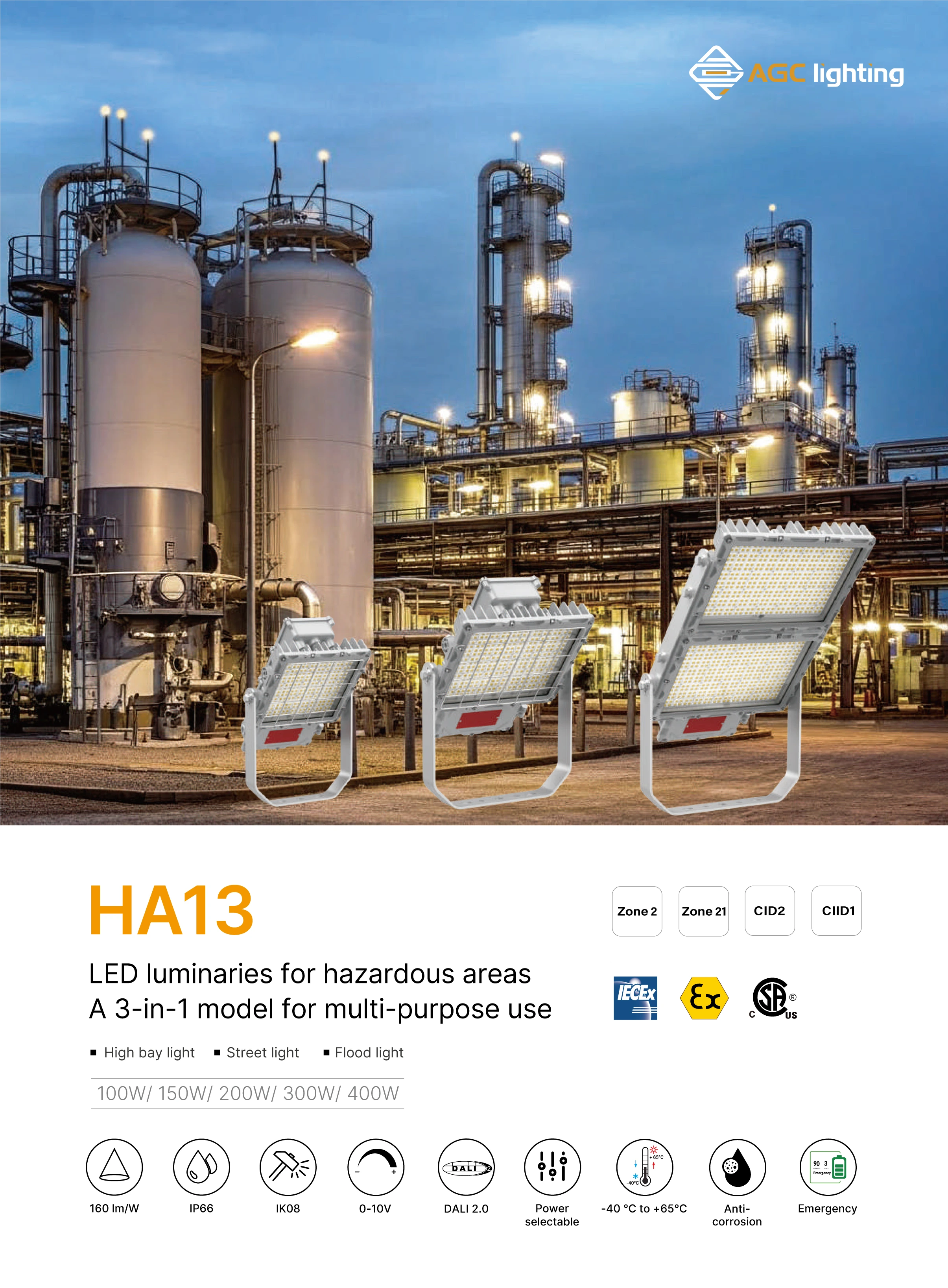

HA13 LED High-power Explosion-proof Floodlight

Zone 2 Area Lights C1D2

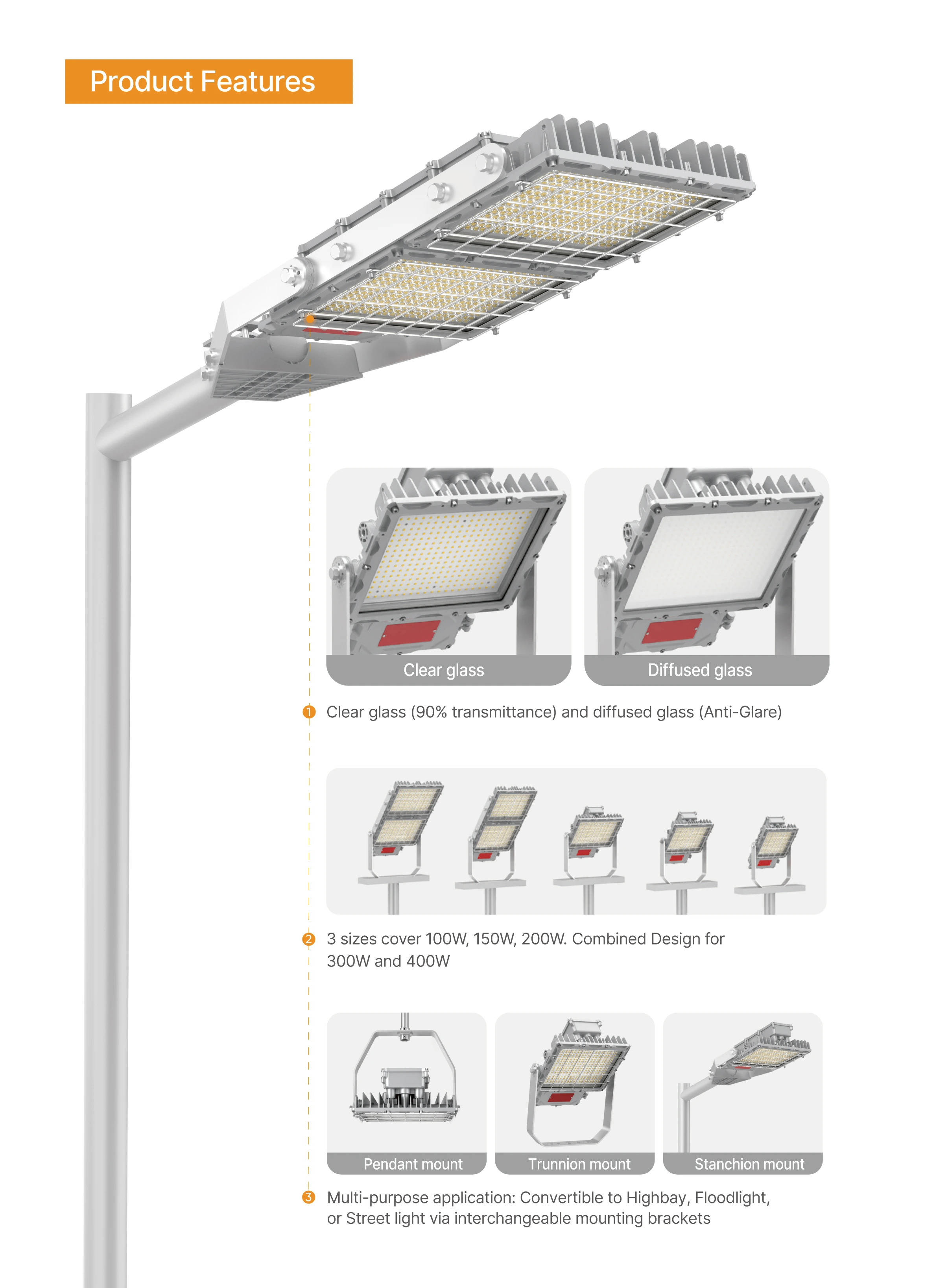

This floodlight is an efficient and durable product designed with multiple optics and installation methods. It optimizes overall output while maintaining a sleek design, making it suitable for various harsh environments.

Material: Copper-free Aluminum
Lumen Output: 16000lm – 64000lm
Dimming Options: 1-10V / 0-10V / DALI Dimmable

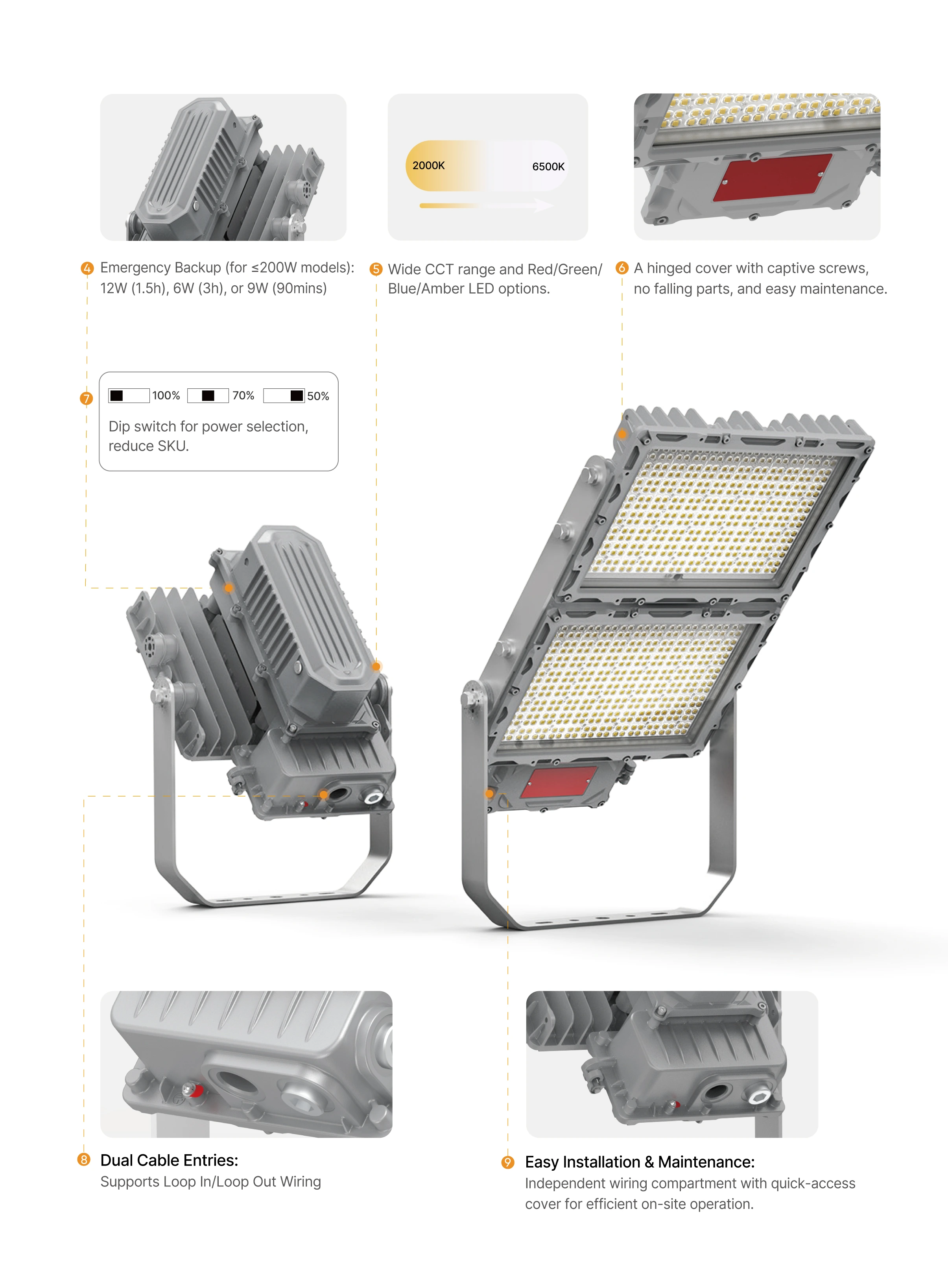

Emergency Backup: Available for Models ≤200W
Cable Entry Sizes: 1/2"NPT, 3/4"NPT, M20×1.5, M25×1.5
Protection Ratings: IP66 & IK09
Operating Temperature Range: -40°C to 65°C

Certifications
Specifications

IECEx:

Ex ec IIC T5 Gc

Ex tb IIIC T95℃ Db IP66

ATEX:

II 3G Ex ec IIC T5 Gc

II 2D Ex tb IIIC T95℃ Db IP66

NEC505:

Ex ec IIC T5 Gc

Ex tb IIIC T95℃ Db IP66

Class I, Zone 1: AEx ec IIC T5 Gc

Zone 21, AEx tb IIIC T95℃ Db IP66

NEC & CEC:

Class I,Division 2,Groups A,B,C,D

Class II,Division 1,Groups E,F,G

Class II,Division 2,Groups F,G

Class III

Suitable for Use Wet Locations

Marine Outside Type (Salt Water)

NEMA 4X

IP66

Series Code	HA13
Power	100W, 150W, 200W, 300W, 400W
IP Rating	IP66
CCT	White (3000K ~ 6500K), Amber
Operating Temperature	-40°C to + 65°C (40°F to +149°F)
Mounting Option	Bracket Mount, Pole Mount, Pedant Mount
Warranty	5 Years

Classifications

Product Type

Harsh Area

HA13 LED High-power Explosion-proof Floodlight
