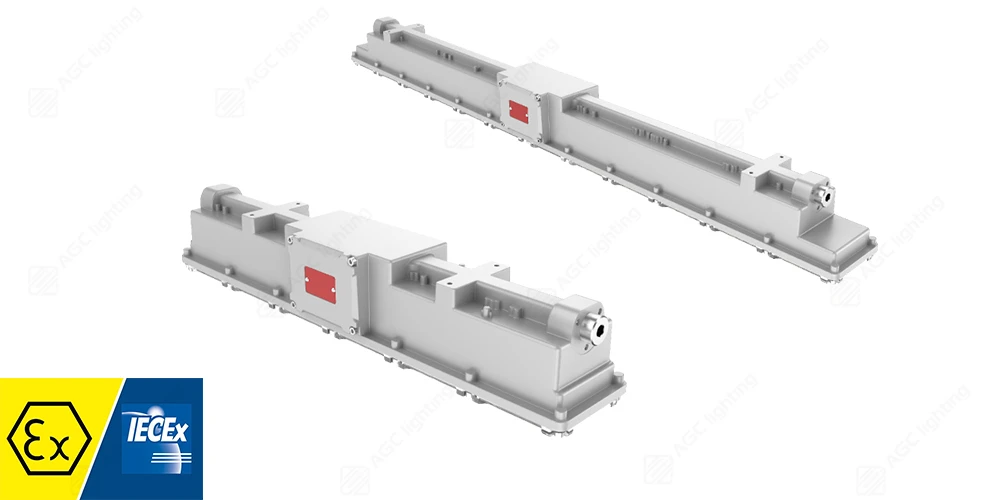

In volatile industrial settings, lighting is more than just visibility—it’s a safety mandate. The AGC HA06 Supernova combines cutting-edge fiberglass polycarbonate technology with high-efficiency performance, making it the premier choice for petrochemical, marine, and heavy industrial applications.
Why Choose the HA06?

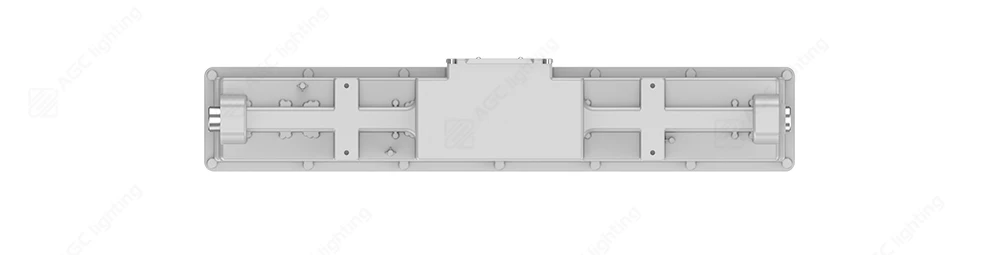

1. Ultimate Corrosion Defense with Fiberglass-reinforced Polycarbonate Housing
The HA06 is crafted from high-density Fiberglass-reinforced polycarbonate, a composite often called "modern concrete" for its incredible durability:
Total Corrosion Immunity: Unlike traditional aluminum, fiberglass polycarbonate is naturally resistant to salt spray, acids, and harsh chemical vapors—setting the gold standard for Marine-Grade lighting.
Inherent Electrical Insulation: The non-conductive shell eliminates static spark risks and simplifies installation, as only the driver requires grounding.
Impact Resilience (IK08): Despite being significantly lighter than metal fixtures, the HA06 remains incredibly tough against physical impact and structural stress.
2. Global Compliance: One Product, Different Market
The HA06 bridges the gap between international standards, allowing global projects to use a single, unified solution:
IECEx & ATEX: Certified for Zone 1 (Gas) and Zone 21/22 (Dust).
North America (UL844): Approved for Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G. Class III
Marine Certified: Complies with UL1598A for reliable operation in saltwater and offshore environments.
3. Precision Engineering & High Efficiency
160 lm/W Efficacy: Experience massive energy savings while achieving up to 16,000 lumens of high-quality light.
14 Optical Patterns: With a wide range of lenses and clear/frosted cover options, the HA06 provides tailored light distribution for any ceiling height or task.
Thermal Range: Built to perform reliably in temperatures ranging from -40°C to +55°C.
4. Effortless "Plug-and-Play" Maintenance
We’ve designed the HA06 to slash labor costs and minimize downtime:
Independent Wiring Chamber: Access terminals without opening the internal LED compartment. This unique design protects sensitive components and speeds up installation by 50%.
Loop-In & Loop-Out: Features multiple cable entry options (M25, NPT 3/4", etc.) to support seamless daisy-chaining without external junction boxes.
Secure Emergency Backup: Optional emergency modules (up to 3 hours) utilize high-safety LiFePO4 batteries for peace of mind during power failures.
Ideal Applications
Petrochemical: Oil refineries, drilling platforms, and chemical storage. (to prevent ignition of flammable vapors; robust for harsh outdoor environments.)
Manufacturing: Pharmaceutical plants, paint spray booths, and pulp & paper mills. (Chemical & corrosion resistance; strict temperature control (T-rating) to prevent thermal ignition in solvent-rich areas.)
Food & Agriculture: Grain silos, flour mills, and processing facilities. (Superior dust-tight sealing to prevent dust explosions; essential for high-particulate environments.)
Infrastructure: Wastewater treatment and maritime ports. (High IP rating for waterproofing; excellent resistance to salt spray and corrosive gases.)
