In industrial environments with flammable and explosive hazards, such as petroleum exploration, refineries, chemical plants, coal mines, and hazardous material warehouses, explosion-proof lighting is not just ordinary lighting equipment, but a critical line of defense for personnel safety and production continuity.
While explosion-proof performance (such as flameproof enclosures and intrinsic safety design) is the basic requirement for such light fixtures, light distribution, as a key technical indicator that determines lighting quality and operational efficiency, plays an irreplaceable role in practical applications.
A scientific and reasonable light distribution design can not only maximize the utilization of light energy but also effectively avoid potential safety hazards caused by improper lighting, becoming a core competitive advantage of explosion-proof lighting in harsh industrial scenarios.
AGC’s HA04 LED Explosion-Proof Floodlight and HA06 LED Explosion-Proof Linear Light are typical representatives of excellent light distribution design, perfectly embodying these advantages in practical applications.
- Optimize Illumination Uniformity to Eliminate Safety Blind Spots
- Improve Light Energy Utilization and Reduce Energy Consumption
- Adapt to Diverse Industrial Scenarios and Meet Customized Needs
- Reduce Glare and Extend Equipment Service Life
- Comply with Industry Standards and Improve Operational Compliance
- Light Distribution Is the "Core" for Efficiency and Adaptability
Optimize Illumination Uniformity to Eliminate Safety Blind Spots
The most fundamental advantage of excellent light distribution in explosion-proof lighting is to achieve uniform and stable illumination in hazardous environments, completely eliminating lighting blind spots that may lead to safety accidents.
In dangerous areas such as chemical workshops, coal mine roadways, and oil storage tanks, uneven lighting, such as excessive local brightness or dark corners, can easily cause operators to misjudge equipment status, miss potential hazards (such as pipeline leaks, equipment failures, or flammable substance accumulations), and even trigger operational errors that lead to explosions or fires.
Through precise light distribution design, explosion-proof lighting can adjust the direction and intensity of light, ensuring that the entire operating area maintains consistent illumination brightness.
AGC’s HA04 and HA06 series fully demonstrate this advantage:
- HA04, an explosion-proof floodlight, offers diffused and clear glass options, combined with 13 types of beam angles (including narrow beam angle, wide beam angle and assymetric angles), which can achieve uniform light distribution in large-area scenes such as oil depots and chemical workshops.
- HA06, a linear explosion-proof lighting, is equipped with 14 optic lenses and optional clear or diffused covers, ensuring that narrow and long spaces like pipelines and production lines are free of lighting blind spots.
For example, in coal mine roadways, Lamps with wide-angle beam (such as 146°) can cover the entire cross-section of the roadway, avoiding blind spots on both sides.
This not only improves the safety of operation but also reduces the probability of safety accidents caused by visual fatigue.
Improve Light Energy Utilization and Reduce Energy Consumption
Industrial hazardous environments often require long-term continuous lighting, and the energy consumption of lighting equipment accounts for a significant proportion of the overall energy consumption of enterprises.
The light distribution design of explosion-proof lighting directly affects the utilization rate of light energy: unreasonable light distribution will lead to a large amount of light being wasted on non-essential areas (such as the ground, walls, or equipment surfaces that do not require high brightness), while scientific light distribution can focus the light on the required illumination area, maximizing the use of every lumen of light energy.
For example, explosion-proof lighting with targeted light distribution (such as narrow-beam or medium-beam design) can concentrate light on operating platforms, inspection points, or production lines, avoiding unnecessary light scattering.
AGC’s HA04 and HA06 series are designed with high-efficiency light distribution to achieve remarkable energy-saving effects:
- HA04 has a luminous efficacy of up to 150lm/W, and HA06 even reaches 160lm/W, which is much higher than the industry average.
- Compared with traditional explosion-proof lighting with non-optimized light distribution, HA04 and HA06 can reduce power consumption by 30% to 50% under the same illumination requirements.
- HA04 also has a built-in power select dip switch (for ATEX&IECEx models), which can adjust power according to actual lighting needs, further improving light energy utilization.
Taking a large chemical plant as an example, replacing ordinary explosion-proof lighting with AGC’s HA04 and HA06 can save hundreds of thousands of yuan in electricity costs every year, while reducing carbon emissions, in line with the development trend of industrial energy conservation and environmental protection.
Adapt to Diverse Industrial Scenarios and Meet Customized Needs
Industrial hazardous environments vary widely in terms of space size, equipment layout, and illumination requirements, from narrow coal mine roadways and tall chemical workshops to open-air oil depots and offshore platforms.
The light distribution design of explosion-proof lighting can be customized according to different scenario characteristics, achieving perfect adaptation to various application needs, which is an important advantage that distinguishes high-quality explosion-proof lighting from ordinary products.
AGC’s HA04 and HA06 series are designed with diverse light distribution options to cover almost all industrial hazardous scenarios.

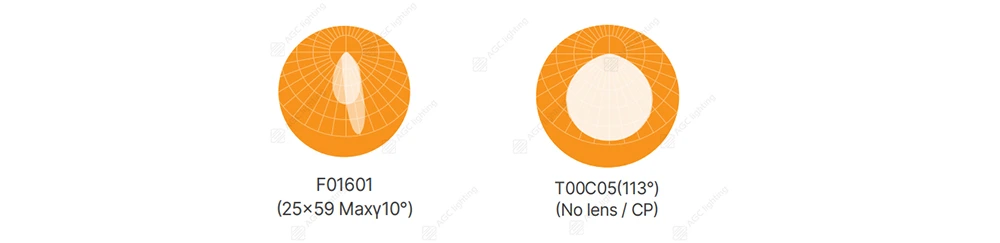

For tall spaces such as large warehouses and high-rise workshops, HA04 with narrow-beam light distribution (such as F01601, 25x59 Maxγ10°) can project light to the ground or operating surfaces from a high height, ensuring sufficient illumination intensity; for narrow and long spaces such as tunnels and pipelines, HA06 with wide-angle light distribution (such as T00C05, 113°) can cover the entire space with fewer fixtures, reducing installation costs and maintenance workload.
HA04 is available in 30W to 240W, covering 4500Lm to 36000Lm, while HA06 has 20W to 100W options, with luminous flux ranging from 3200lm to 16000lm, matching different space sizes.
In addition, for special scenarios such as coastal areas and wildlife protection zones, HA04 and HA06 offer multiple color options, like amber, red, green, and blue. Amber color can isolate the blue wavelength, reducing light pollution and being wildlife-friendly.
Both series are equipped with angle-adjustable brackets (HA04) or multiple mounting options (HA06, including ceiling, pendant, and recessed mount), allowing users to reorient the light to adapt to new tasks, further enhancing scenario adaptability.
Reduce Glare and Extend Equipment Service Life
In industrial production, glare caused by excessive light intensity not only easily leads to visual fatigue of operators, affecting work efficiency and judgment accuracy, but also may trigger safety accidents in severe cases.
The scientific light distribution design of explosion-proof lighting can effectively control glare by optimizing the light emission angle and light intensity gradient, ensuring that the light is soft and comfortable, and avoiding direct light stimulation to the human eye.
AGC’s HA04 and HA06 series adopt professional anti-glare design: HA04 is equipped with high-transmittance anti-glare glass, and HA06 has optional diffused covers, both of which can limit the light emission angle within a reasonable range, reducing direct glare and reflected glare.
At the same time, their optimized light distribution design reduces heat concentration caused by uneven light emission, both series separate the light source and driver chamber with optimized spacing, achieving superior heat dissipation.
This not only avoids local overheating of the light fixture but also effectively extends the service life of the light source and the light fixture.
With reasonable light distribution and excellent heat dissipation, HA04 and HA06 have a 5-year warranty, and the service life of the light source can reach more than 50,000 hours, which greatly reduces the maintenance frequency and cost of the light fixtures in hazardous environments.
In addition, both series support 1-10V or DALI dimming (HA04) and emergency lighting functions (HA06), which can adjust light intensity according to the environment, further reducing glare and energy consumption.
Comply with Industry Standards and Improve Operational Compliance
In industrial hazardous environments, the installation and use of explosion-proof lighting must comply with strict national and industry standards (such as IECEx and ATEX international standards) to ensure the safety and reliability of the equipment.
The light distribution design of explosion-proof lighting is also an important part of meeting these standards. Relevant standards clearly specify the illumination intensity, uniformity, and glare control requirements of explosion-proof lighting in different hazardous environments, and only light fixtures with qualified light distribution can pass the certification and be put into use legally.
AGC’s HA04 and HA06 series fully comply with international standards and have obtained complete certifications:
Both HA04 and HA06 meet NEC & CEC, IECEx, and ATEX standards, suitable for Zone 2 and C1D2 environments;
Their light distribution parameters (illumination intensity, uniformity, glare control) all meet the requirements of relevant standards, ensuring that they can be safely used in explosive gas environments (Zone 2) and combustible dust environments (Zone 21, 22).
For example, in Zone 2 explosive gas environments such as oil and gas fields, HA04 and HA06’s light distribution design avoids local overheating, eliminating the risk of igniting flammable substances.
Choosing AGC’s HA04 and HA06 not only ensures the safety of the enterprise's production operations but also avoids legal risks and economic losses caused by non-compliance with standards.
Light Distribution Is the "Core" for Efficiency and Adaptability
In the field of explosion-proof lighting, explosion-proof performance is the "bottom line" for safety, while light distribution is the "core" for efficiency and adaptability.
The advantages of excellent light distribution are reflected in all aspects of industrial production:
- It eliminates safety blind spots and ensures operational safety;
- It improves light energy utilization and achieves energy conservation and emission reduction;
- It adapts to diverse scenarios and meets customized needs;
- It reduces glare and extends equipment service life;
- It complies with industry standards and improves operational compliance.

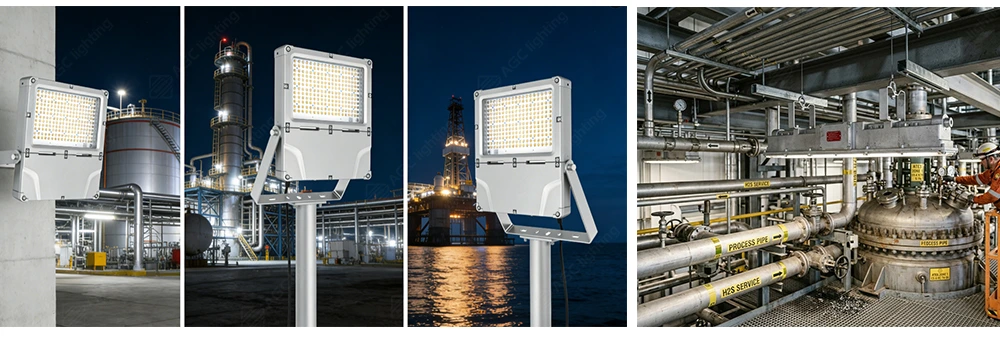

AGC’s HA04 LED Explosion-Proof Floodlight and HA06 LED Explosion-Proof Linear Light fully integrate these advantages into product design, with diverse beam angles, high luminous efficacy, anti-glare performance, and complete certifications, perfectly adapting to chemical, oil and gas, manufacturing, and other industrial hazardous environments.
For enterprises, choosing explosion-proof lighting with scientific light distribution design, such as AGC’s HA04 and HA06, is not only an investment in safety but also a way to reduce operational costs and improve production efficiency.
In the future, with the development of technologies such as LED and intelligent control, the light distribution design of explosion-proof lighting will be more precise and intelligent, and AGC will continue to optimize HA04, HA06, and other product lines, bringing more reliable and efficient lighting solutions to industrial hazardous environments, and escorting the safe and stable development of the industry.
