In industrial scenarios with flammable and explosive risks such as petrochemical engineering, offshore platforms, mining, and warehousing & logistics, lighting is not only the foundation for ensuring production and operation efficiency, but also the core guarantee for the safe evacuation of personnel and emergency operation of key equipment in unexpected situations.
As an important part of the industrial safety lighting system, the emergency function of explosion-proof luminaires breaks the dependence of conventional lighting on the power grid, provides a stable light source continuously in case of power outages, malfunctions and other emergencies, and becomes an irreplaceable safety configuration in high-risk scenarios.

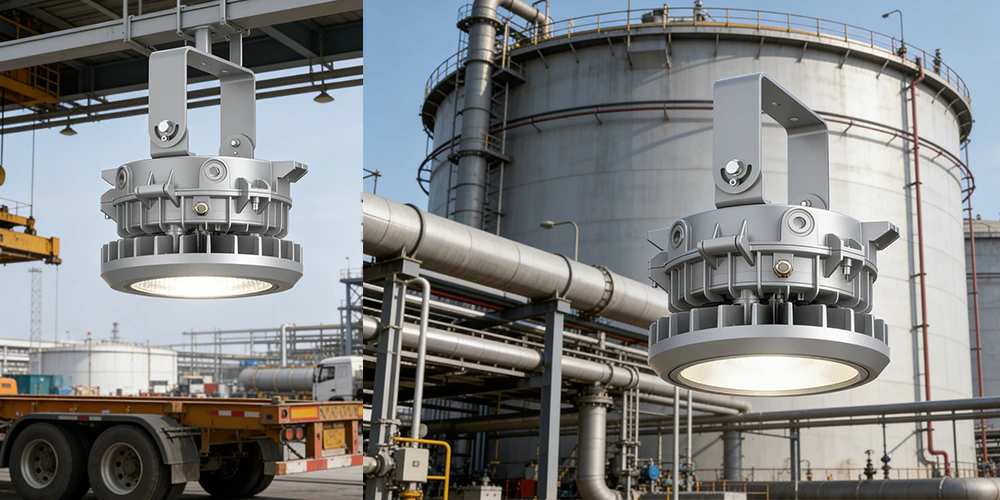

The HA05 LED Explosion-Proof High bay Light launched by AGC Lighting integrates the emergency power supply design as the core, highly combines the emergency lighting and explosion-proof lighting functions, accurately meets the safety requirements of hazardous areas such as Zone 2 and C1D2, realizes the dual upgrading of the practicability and reliability of emergency lighting, and builds a solid defense for the safe operation of high-risk scenarios in various industries.
- Full-Dimensional Coverage: Real-World Emergency Scenarios
- Petrochemical Parks (Tank Farms, Pump Houses, Loading Areas)
- Marine engineering: Offshore platforms, ship decks
- Mining and warehousing: Underground mine tunnels, hazardous chemical warehouses
- Continuous Production Workshops (Chemical & Precision Manufacturing)
- Public and industrial supporting facilities
- Engineered Excellence: 3 Core Design Advantages of the HA05
- Integrated design, no additional wiring required
- Two optional durations, accurately matching the emergency needs
- Deep integration with explosion-proof performance, no safety dead ends
- Application Value of the Emergency Function of Explosion-Proof Luminaires
Full-Dimensional Coverage: Real-World Emergency Scenarios
The emergency function of explosion-proof luminaires is not a single "power outage light supplement", but covers the multi-dimensional needs of emergency power outage response, equipment fault handling, personnel safe evacuation, and continuous operation of key processes in accordance with the production characteristics and operation processes of flammable and explosive scenarios.
All scenarios involving flammable and explosive media, closed/semi-closed operation spaces and 24-hour continuous production are the core application areas of explosion-proof luminaires with emergency function, and also the main adaptation scenarios of the HA05 LED Explosion-Proof Highbay Light.
Petrochemical Parks (Tank Farms, Pump Houses, Loading Areas)
These areas are highly prone to the accumulation of flammable and explosive gases. In a sudden power outage, the HA05 activates instantly, providing clear visibility for operators to safely close valves, isolate pipelines, and troubleshoot faults, while guiding patrol personnel along safe evacuation routes.
Marine engineering: Offshore platforms, ship decks
Operating in high salt spray, high humidity, and volatile weather, marine platforms face both explosion risks and unstable power supplies. Built with marine-grade materials, the HA05 ensures continuous illumination for equipment handling and cabin evacuation when main power grids or ship generators fail.
Mining and warehousing: Underground mine tunnels, hazardous chemical warehouses
Underground mine tunnels are closed with limited visibility, and hazardous chemical warehouses store flammable, explosive or corrosive media. Both types of scenarios have extremely high requirements for the stability of lighting.
In case of a sudden power outage, the emergency light source of HA05 can illuminate the evacuation passages of mine tunnels and the fire doors and emergency switches of hazardous chemical warehouses, allowing staff to evacuate quickly and in an orderly manner, and at the same time providing lighting support for the on-site disposal of emergency rescue personnel, reducing potential safety hazards in closed spaces.
Continuous Production Workshops (Chemical & Precision Manufacturing)
For processes running 24/7, abrupt power loss can lead to ruined raw materials, severe equipment damage, or volatile process interruptions. HA05 models (≤150W) feature an integrated emergency backup that delivers 90 minutes or 3 hours of continuous light, allowing personnel enough time to execute safe shutdowns and protect valuable assets.
Public and industrial supporting facilities
Explosion-proof passages, power distribution rooms, fire control rooms
The supporting passages, power distribution rooms and fire control rooms in flammable and explosive scenarios are the "hub areas" of safety guarantee. Continuous lighting must be maintained when the power is off to ensure the normal operation of emergency equipment and the unimpeded access of fire passages.
The emergency function of HA05 can stand by for 24 hours of emergency in such areas, providing basic lighting guarantee for safety management and emergency disposal.
Engineered Excellence: 3 Core Design Advantages of the HA05
To truly perform in hazardous areas, emergency lighting must balance certified explosion protection, environmental resilience, and practical installation. The HA05 solves common industrial pain points through three major design innovations:
Integrated design, no additional wiring required
Unlike traditional split-type emergency fixtures that require separate, bulky enclosure boxes and complex wiring, the HA05 models of ≤150W highly integrate the emergency power supply with the luminaire body, without the need to install a separate emergency power supply box or additional emergency wiring, which fundamentally reduces the line interfaces in hazardous areas, lowers the explosion-proof risks caused by line aging and poor contact, and at the same time conforms to the installation specification of "fewer interfaces and less wiring" in explosion-proof scenarios.
It complies perfectly with the "fewer interfaces, less wiring" safety ethos and allows for seamless, direct replacement of legacy fixtures without restructuring existing electrical lines.
Two optional durations, accurately matching the emergency needs
Different high-risk scenarios have significant differences in the duration requirements of emergency lighting: passages and warehouses for the rapid evacuation of personnel only need a short-term emergency light source, while pump houses and workshops that need to complete equipment operation and fault troubleshooting require a longer lighting support.
HA05 provides 90 minutes/3 hours dual duration options for the emergency function, and customers can flexibly select according to the production characteristics and operation processes of their own scenarios, which not only avoids the problem that the short duration cannot meet the operation needs, but also eliminates the energy and cost waste caused by the long duration, greatly improving the practicability of the emergency function.
Deep integration with explosion-proof performance, no safety dead ends
The existence of the emergency function does not reduce the core explosion-proof performance of HA05. The product fully complies with international authoritative explosion-proof certifications such as NEC&CEC, IECEx and ATEX, and is adapted to various hazardous areas such as Class I Division II, Zone 2 and Zone 21/22.
Its emergency power supply and luminaire shell all adopt a high-protection design, with an overall IP66 dust and water resistance rating and IK08 impact resistance rating, and can work stably in an extreme temperature and humidity environment of 0℃ to +55℃.
At the same time, it is equipped with a marine-grade copper-free aluminum alloy die-casting shell, stainless steel standard parts and special anti-corrosion treatment, adapting to harsh environments such as marine, high salt spray and high corrosion, ensuring that the emergency lighting can maintain a stable and safe working state in various high-risk scenarios.
Application Value of the Emergency Function of Explosion-Proof Luminaires
Investing in robust explosion-proof emergency lighting isn't just about ticking a regulatory box—it drives genuine operational value and cost efficiency:
The emergency design of AGC Lighting HA05 LED Explosion-Proof Highbay Light gives full play to this value to the extreme with its core advantages of integrated emergency power supply, two optional durations, marine-grade environmental adaptation and authoritative explosion-proof certification, bringing dual benefits of "safety + efficiency" to customers.
Human-Centric Safety
In high-risk scenarios, a sudden power outage is easy to cause panic among personnel, and the dark environment is the fuse of various safety accidents.
The emergency function of explosion-proof luminaires can be automatically activated the moment the power is off, providing a clear and stable light source for on-site personnel.
On the one hand, it guides the safe evacuation passage to ensure that personnel leave the dangerous area quickly and in an orderly manner; on the other hand, it provides lighting support for on-site operators and emergency rescue personnel, allowing them to carry out fault troubleshooting, equipment shutdown and emergency disposal work quickly, and fundamentally reducing the risk of personnel casualties.
Asset & Revenue Protection:
For high-risk industries with 24-hour continuous production, if there is a sudden power outage without emergency lighting, it is easy for operators to fail to complete key operations such as equipment shutdown and raw material storage in a timely manner, which in turn leads to equipment damage, raw material leakage, production process interruption and other problems, causing huge economic losses.
The emergency function of HA05 can provide long-term stable lighting, allowing staff to efficiently complete emergency operations after a power outage, minimize equipment damage and production losses, and ensure the stability of the production system.
Regulatory Peace of Mind
The safety specifications of industries such as petrochemical engineering, marine engineering and mining have clear requirements for emergency lighting in flammable and explosive scenarios.
The configuration and operation status of emergency lighting equipment are important assessment indicators for enterprises' safe production inspection and compliant operation.
The emergency function design of HA05 complies with international and domestic industry safety specifications, and its authoritative explosion-proof certification and stable emergency performance can help enterprises meet the needs of compliant operation and avoid safety penalties and production risks caused by substandard emergency lighting.
All-in-One Cost Efficiency
HA05 highly integrates explosion-proof lighting, emergency lighting, intelligent dimming (1-10V/DALI) and other functions, eliminating the need for enterprises to purchase explosion-proof luminaires and emergency lighting equipment separately, and also reducing the labor and time costs of equipment installation and maintenance.
At the same time, the product has a 5-year long warranty, and the emergency power supply is maintained synchronously with the luminaire body, which greatly reduces the later maintenance cost, allowing enterprises to effectively control the comprehensive investment of the lighting system while realizing safety upgrading and improving cost performance.
As modern heavy industries evolve toward smarter and safer operational frameworks, emergency lighting requirements must keep pace.
The AGC Lighting HA05 LED Explosion-Proof Highbay Light successfully bridges the gap between unyielding safety compliance and practical economy.
By deeply embedding a reliable emergency backup within a certified, marine-grade explosion-proof shell, it delivers a comprehensive "safety + efficiency" package to industrial facilities worldwide. Looking ahead, AGC Lighting remains committed to a scenario-driven approach—continuously upgrading battery lifespans, integrating intelligent controls, and adapting to niche industrial needs to provide next-generation lighting defenses for high-risk sectors.
