For decades, the standard choice for ATEX and IECEx hazardous locations was the fluorescent linear fitting. Selecting one was simple: you chose a power rating like 2*36W and called it a day. However, clinging to this "fluorescent era" mindset prevents users from realizing the true efficiency and financial benefits of modern technology.
At AGC Lighting, we believe that selecting the right linear LED fitting requires looking beyond the light source to the complete luminaire system.
System Performance vs. LED Performance
It is a common mistake to focus solely on the LED chip specifications. When selecting a linear LED fitting, the actual performance is a complex trade-off between thermal management, optical efficiency, and light quality.
- Lifetime Discrepancy: The theoretical lifetime of an LED chip does not correspond to the functional lifetime of the entire fitting.
- System Integration: Factors like the control gear and battery reliability are often the real determinants of when a fixture fails.
Strategic Protection: Zone 1 vs. Zone 2
Understanding equipment categories is the first step in ensuring safety and long-term flexibility.
- Future-Proofing: Installing a 2G (Zone 1) rated fitting in a Zone 2 area allows for future site modifications without replacing the entire lighting installation.
- Reducing Complexity: Using IIC gas group rated fittings across a site helps eliminate the risk of installing the wrong product in the wrong location.
Maintenance Logic: Ex e vs. Ex d
While both "Increased Safety" (Ex e) and "Flameproof" (Ex d) methods provide high protection, they impact your plant’s lifecycle differently.
The Ex d Constraint: Flameproof protection relies on a precision-machined flame path. Even a minor scratch during maintenance can compromise the protection, requiring highly skilled labor for repairs.
The Ex e Advantage: Ex e fittings are designed to exclude explosion sources entirely. They are generally easier to open and service, leading to longer operational lifetimes and reduced maintenance complexity.
Material Science in Harsh Environments
The durability of a linear LED fitting depends heavily on its housing and cover materials.
- Corrosion Resistance: For offshore or chemical plants where aluminum might corrode, Glass Reinforced Polyester (GRP) is the ideal housing material.
- UV Protection: While standard GRP can be damaged by continuous sunlight, AGC Lighting solutions utilize specialized textured designs to significantly increase protection against UV radiation.
Cover Materials

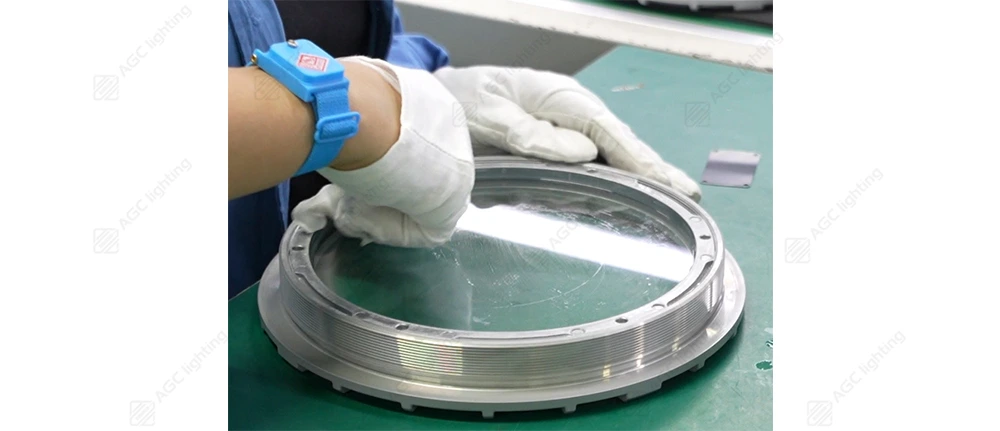

Toughened Glass: Easy to clean and resistant to detergents. If it meets 4J impact requirements, it can be used in Zone 1 without a bulky metal grid.
Polycarbonate (PC): A preferred solution for Food & Beverage applications where "no-glass" policies prevent the risk of splinters.
Precision Optics: Lux over Lumens
In the LED world, "more lumens" does not always mean better visibility.
- Targeted Intensity: The goal is to provide the required light intensity (Lux) on a specific surface, not just raw output (Lumens).
- Beam Control: Because LEDs are point-source emitters, they can be paired with optics to create narrow, medium, or wide beam patterns. This precision often allows you to achieve the same light levels with fewer fittings than conventional systems.
The Heart of the Fitting: Driver
As LED technology matures, the driver has become the most critical component for reliability.
- Power Quality: High-quality dricer should offer Total Harmonic Distortion (THD) lower than 8% to prevent disturbances to other critical equipment.
- Surge & Inrush: Built-in 4kV surge protection and in-rush current limiters are essential for protecting the circuit and ensuring long-term functionality.
- Advanced Thermal Management: To prevent heat transfer between the LED and the electronics, AGC Lighting separates these compartments. This design ensures higher output and longer life even in high-temperature environments.
Optimizing a hazardous area lighting installation requires moving away from one-to-one replacements and embracing advancements in material science and electronic design. By focusing on technical logic and environmental "scenes," AGC Lighting provides robust solutions for linear LED fitting selection that reduce initial investment while maximizing safety and energy savings.
